Jzc400 Cement Mixing Machine Construction Machinery Drum Concrete Mixer Trucks

Product Description

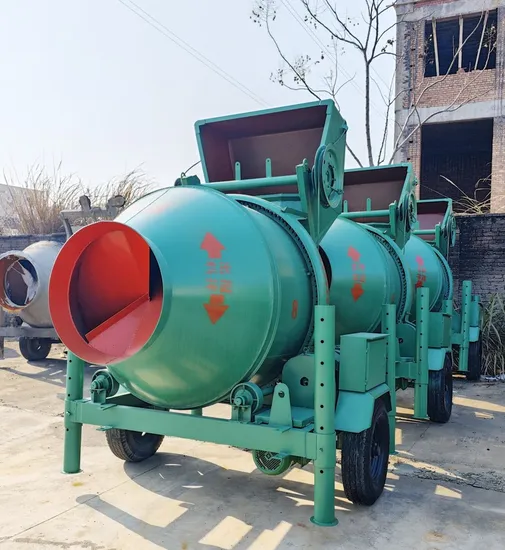

Jzc400 Cement Mixing Machine Construction Machinery Drum Concrete Mixer Trucks
Product Description
The drum-type mixing mechanism is composed of a mixing drum, supporting wheel, and transmission system.
*The mixing drum is biconical. There are two pairs of high and low pieces welded into the drum. They are arranged in a crossway and
form an included angle with the axis of the mixing drum.
*.A pair of discharge blades are welded inside the discharge cone of
*The motor drives the gear ring through the reducer to rotate the mixing drum
*Two-stage helix gear reducer
*The forward and reverse rotation of the shaking cylinder is realized by the motor commutation.
Detailed Photos

1. small concrete mixer, can be stirred plastic and hard concrete. 2. Novel structure, reliable performance, high productivity, good mixing quality, lightweight, beautiful appearance, easy operation, and maintenance, etc. 3.It is a kind of advanced small-scale concrete mix
In case of a shutdown
Check whether it is caused by the following conditions:(1) The gear ring is not lubricated(2) Overcharge (far more than two-thirds of total capacity)(3) Long-time use, motor overheating, etcThe motor itself has overload protection

The water supply system is composed of a motor, a water pump
a regulating valve and a pipeline. After the motor is powered
the water pump can directly inject water into the mixing drum,
and the water flow is adjusted through the regulating valve
(the flow has been adjusted properly when leaving the factory).
The amount of water required for mixing is realized by directly controlling
the running time of the pump motor through the time relay in the electric box.
The user can select the required time according to the given time flow diagram,
and check or modify the diagram regularly.
When supplying water, press a button on the left to start the water pump.
When the time is up, the water supply circuit will be cut off automatically.
After the rotary button on the right rotates,
press the button on the left to continuously supply water



Product Parameters

SPECIFICATIONS FOR JZM Drum Mixer
Model no.	JZM350	JZM400	JZM450	JZM500	JZM750
Loading volume(L)	560	640	720	800	1200
Unloading volume(L)	350	400	450	500	750
Productivity(m³/h)	≤13	≤15	≤17	≤19	≤25
Maximum aggregate size ( mm)	60	60	60	60	60
Drum mix speed(m/min)	15	15	15	15	12.36

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are the only and largest concrete mixing plant manufacturer in Jiangxi. The company has developed rapidly in recent years, and the new plant will be completed and put into production in May 2023, with a total area of 20,000 square meters. We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications

Our Advantages
FAQ

1. Are you a manufacturer, trading company, or a third party?
We are a manufacturer with 15 years of experience
2. Can the machine be customized to our needs, such as put on our logo?
Our faith is to Get The Right Equipment for the Job, Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If I will need to stay at your place for a few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take a long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the device can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come to visit our company.

6. How can I get to your factory?
We can pick you up at the airport.
7. May I know which payment will be accepted by your company?
So far 100%T/T before shipment, 30% deposit paid by T/T, and balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred with your overseas customer in time?
The warranty of our machine is typically 12 months, during this period, we will arrange the international express immediately, to make sure the replacement parts are delivered as soon as possible.
9. After we place an order, will you arrange the installation of the machine at present?
All the machines will be tested well before being delivered, so almost of them can be used directly, also our machines are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the costs will be be
charged by you.

---
