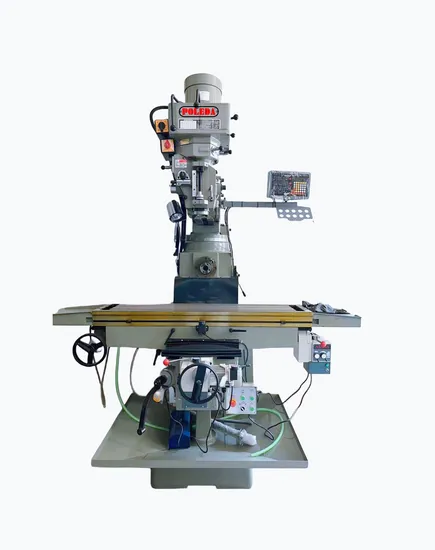

6m Vertical Turret Milling Machine, Nt40 Spindle, Powerful Motor

Product Description

Product Description
The role of vertical milling machine
1. Cutting processing
Vertical milling machines can be cut to process a variety of metal materials, including cast iron, steel, aluminum alloy, brass, etc. It can process a variety of different shapes and sizes of the workpiece, such as plane, convex, concave, curved surface, etc.
2. Precision machining
The vertical milling machine can also perform precision machining. It can form high precision geometry and surface quality on the workpiece surface. Therefore, when manufacturing high-precision parts or components, the vertical milling machine is a commonly used machine tool.
Detailed Photos

Product Parameters

Product Name	Milling machine
Product model	6M
Product technical parameters
dimension	Table size	1370*330MM
journey	Left and right stroke(X)	1000MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° around
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	2000*1700*2500MM
	Approximate machine weight	1880kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11,NT40 chuck	1
	12.Z axis automatic lifting device	1

Packaging & Shipping
The machine has good performance, high processing efficiency, simple operation and long service life

---
