Xz320d HDD Horizontal Directional Drill Rig for Sale

Product Description

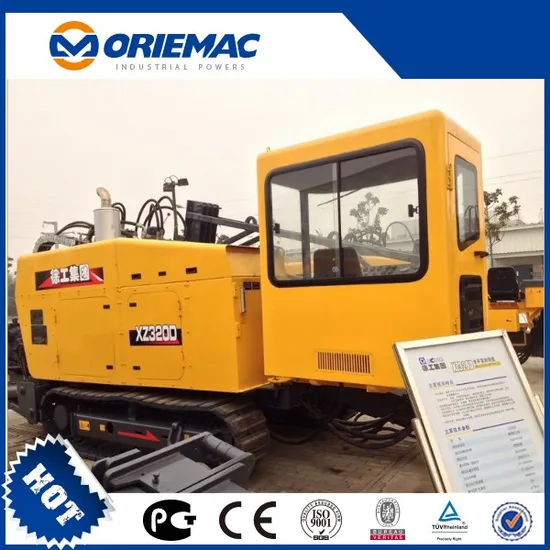

Xz320d Horizontal Directional Drill Rig
Product Description 1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, Piston Motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
Technical Parameters

Model	Unit	XZ3Z0D
Engine		CUMINS
Rated power	kW	153
Push-pull		Rack and pinion
Max.pullback/thmsting	kN	320/320
Spindle torque (max)	N.m	12000
Spindle speed	r/min	0-140
Travelling speed of power head	m/min	0-20
Backreaming diameter	mm	Φ800
Pipe length(single)	m	3
Pipe diameter	mm	Φ73
Entry angle	°	10~20
Mud flow rate (max)	L/min	320
Mud pressure (max)	bar	80
Overall weight	T	11.5
Dimension (LxWxH)	mm	6500x2250x2450

Product Pictures
