Hot Selling 1000kg/H PE Bottle Flakes /Lumps Film Recycling Pelletizing Machine Pet with FDA Certificate

Product Description

Hot Selling 1000kg/H PE Bottle Flakes /Lumps Film Recycling Pelletizing Machine PET with FDA Certificate Product Description

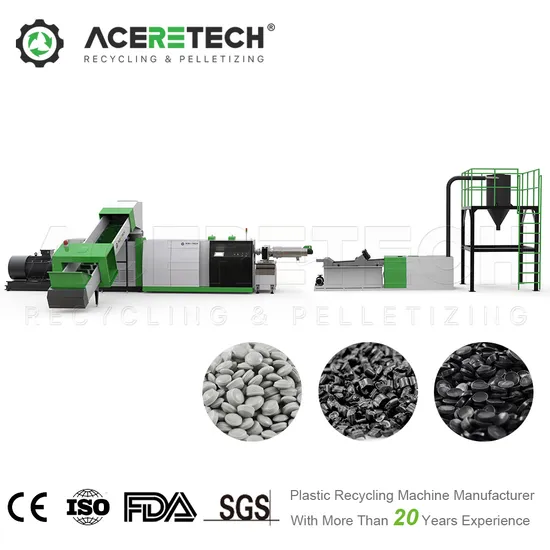

The acs series compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step.applied in the plastics recycling and pelletizing process.
ACS system is a reliable and efficiency solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
Final productions produced by acs system are in the form of pellets/ granules, can directly put into the production line for film blowing, pipe extrusion and plastics injection, etc. Aceretech Recyclable Plastics Include:
* LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton * PP/OPP/BOPP/CPP film, woven bag,non-woven fabric (melt blown) * PA66 fishing net, silk, factory trim, carpet
* PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
* PTT wire
* EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
* HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
* PVB crushed material, flakes
* PU
Product Parameters

Machine Model	ACS
Target Recycled Material	HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS
Final Product Shape	Particles
System composition	Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration, Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Product Silo.
Output Range	150kg/h-1200kg/h
Feeding Device	Belt Conveyor (Standard), Roll Hauling off device (Optional)
Compactor Volume	300L-1400L
Diameter of screw	80mm-180mm (Standard)
Material of screw	38CrMoAlA (SACM-645), Bimetal (Optional)
L/D of screw	31/1, 32/1, 34/1, 36/1 (According to the characteristics of recycling)
Heater of barrel	Ceramic heater or Far-infrared heater
Cooling of Barrel	Air cooling of fans through blowers
Vacuum deashing exhaust	Two Double-zone vacuum degassing system (Standard)
Pelletizing type	Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing
Voltage Standard	According to the Voltage of the Customer's Location
Optioanl device	Metal detector, Roll hualing off device, Masterbatch and additives feeder
Warranty	13 months from the date of bill of lading
Technical services	project design, factory construction, installation and recommendations, commissioning

Suitable Products
Final Products
Detailed Photos

Company Profile


FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
* ACERETECH is original manufacturer.
* If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
* The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strict control by inspecting personnel.
* Each assembly is in charge by a master who has working experience for more than 15 years
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
* After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
* After the commissioning, we will package the equipment by the standard export package for shipment.
* According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
* Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

IF YOU WOULD LIKE TO KNOW MORE ABOUT US, PLEASE
CONTACT US

---
