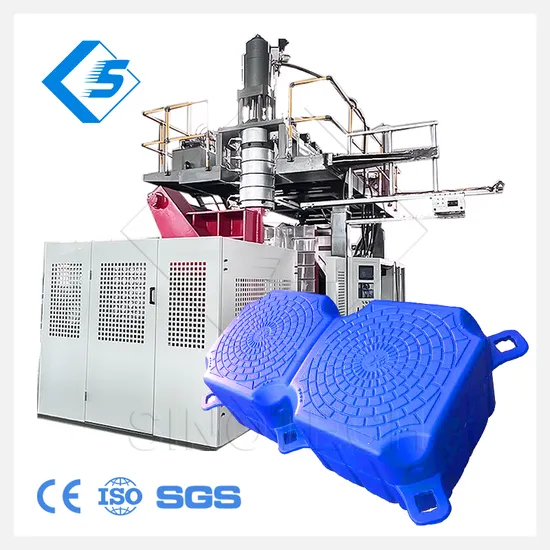

Big Drum Extrusion Blow Molding Machine /Automatic Plastic Machinery

Product Description

Product Description
Advantages:
1. The temperature controlled by seimens PLC, the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.
2. There is die head pressure testing in the diehead. The PLC shots down the extruders if the pressure inside the die head is too high.
3. The extruders have covers for keeping the temperature, so can make the heating time short
4. The temperature are controled by seimens brand.
5. The extrusion motor is seimens brand.
6. The inverter is seimens brand.
7. More protection in control system.
Detailed Photos
Product Parameters

Specifications		STD-250A
Max. Product Volume	L	250
Station		Single
Dry Cycle	PC/h	300
Screw Diameter	mm	120
Screw L/D Ratio	L/D	32:1
Screw Drive Power	Kw	132
Screw Heating Power	Kw	23.6
No. Of Heating zone	Zone	5
Output of HDPE	Kg/h	320-380
Hydraulic pump driving power	Kw	22
Clamping force	KN	770
Platen distance	mm	800-1800
Max.size of mold(W*H)	mm	1200*1720
Capacity of accumulator head	L	22
Max.die diameter	mm	620
Die heating power	KW	15
No.of heating zone	Zone	6
Blowing Pressure	Mpa	1.0
Air consumption	m³/*min	2.0
Cooling water pressure	Mpa	0.3
Water consumption	L/min	300
Size of machine(L*W*H)	m	7.8*2.9*5.4
Weight of machine	T	35

Application
Company Profile
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time

---
