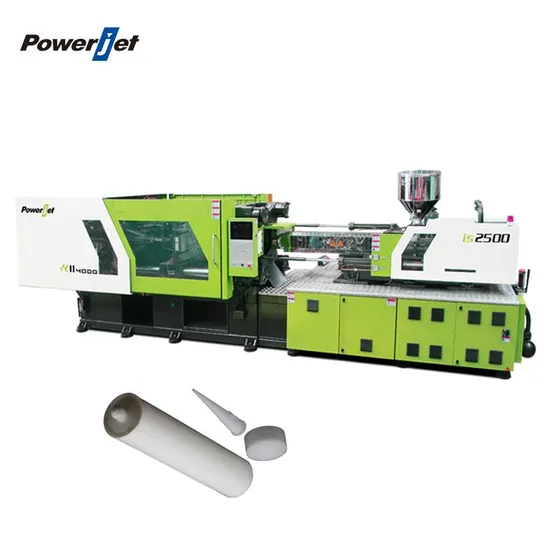

Powerjet High Precision Silicone Sealant Glue Tube Injection Molding Making Machine

Product Description

Product Description
Specification

DESCRIPTION			UNIT	KII400-S7
LAMPING UNIT	Clamping force	KN	4000
		Opening stroke	mm	710
		Max.datlight	mm	1440
		Platen size	mm	1080*1060
		Space between bars	mm	740*720
		Max.mold height	mm	730
		Min.mold height	mm	300
		Ejector stroke	mm	210
		Ejector force	KN	110
INJECTION UNIT	Screw diameter	mm	90
		Screw L/D Ratio	L/D	19
		Injection Pressure	MPa	119
		Shot volume	cm3	2099
		Shot weight (ps)	g	1907
			oz	67.3
		Injection rate	g/s	642
		Screw stroke	mm	330
		Screw speed	rpm	160
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	45/57
		Heater power	KW	22
GENERAL	Oil tank capacity	L	520
		Machine weight	T	13.1
		Machine dimensions (L*W*H)	m	7.97*1.97*2

Company Profile

Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
