High Quality Multifunctional Dual-Purpose Impact Crusher

Product Description

Product Introduction

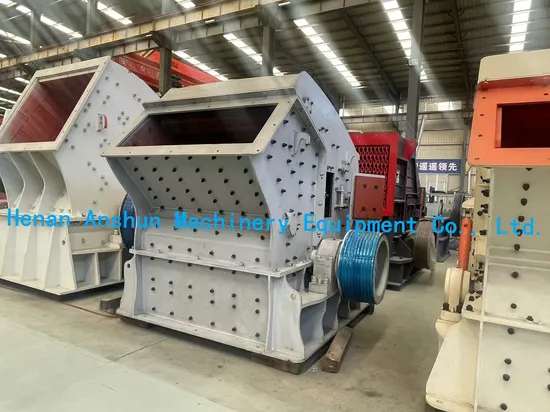

CS5X series impact crusher is newly designed to meet customers' needs for high profit, low cost, energy saving and consumption reduction. It is an ideal choice for coarse and medium crushing in large-capacity crushing production lines. It integrates high-precision rotors with large moment of inertia, multi-functional full hydraulic operating system, involute crushing chamber and other new scientific research results, with high comprehensive cost performance, helping customers obtain reliable profitability.

Working Principle
The impact crusher uses impact energy to crush materials. When working, the rotor rotates at high speed driven by the motor. When the material enters the plate hammer action area, it hits the plate hammer on the rotor and is crushed. Then it is thrown to the impact device and crushed again. Then it bounces back from the impact liner to the plate hammer action area and is crushed again. This process is repeated until the material is crushed to the required particle size and discharged from the discharge port. The purpose of changing the discharge particle size and shape of the material can be achieved by adjusting the gap between the impact frame and the rotor.
Specifications and Performance Parameters

Model	Specification	Feed Inlet Size (mm)	Feeding Size (mm)	Processing Capacity (t/h)	Motor Power (kw)	Overall Dimension LxW×H(mm)
CS5X1315	1300×1500	1540×930	≤600	250-350	250-315	2880×2755×2560
CS5X1415	1400×1500	1540×1320	≤700	350-550	250-315	2995×2790×3090
CS5X1520	1500×2000	2040×520	S900	400-600	400-500	3390×3475×2790
CS5X1620	1600×2000	2040×1630	≤1100	500-900	400-500	3485×3605×3720
CS5X2023	2000×2300	2400×1920	≤1300	1200-2000	1000-1200	4890×4330×4765

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry. Packaging & Shipping
Certifications
FAQ
Support: We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience. After-sales service support : After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands. We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support : ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
