| US$10,000.00-24,270.00 | 1 Piece (MOQ) |
| The system pressure is increased to 17.5Mpa, the hydraulic system flow is increased and upgraded, and the low inertia high response servo system is adopted. It has the characteristics of large pipe diameter, short pipe length, fast response, low noise, strong power, etc., and the injection speed is fully improved. |
| 1. The optimized designed 5-point toggle clamping structure has a central clamping effect and bigger opening stroke, lower axis-pin contact stress, more suitable for deep cavity product molding. It makes the clamping force acts on the mold directly, and avoids the disadvantage of outward toggle structure caused the inclination of mold-plate when making the long stroke and eccentric mold. The moving plate moves faster, more stable, and more controllable, and the machine dry cycle cycle is shorter. | |
| 2. The ultra-high rigidity square plate and tie-bar structure design caters to international mold design standards, improves mold adaptability, reduces principal stress, the plate force is more uniform, extends the life of tie-bar, and more effectively fit and protect the mold. | |
| 3. The front connecting rod interprated desigh and the toggle non-chuck structure improves the life of the machine and reduces the maintenance cost. The ejection stroke is longer, the ejection part is equipped with a forced retracting device as standard, and the ejection position can be adjusted freely. | |
4. Side-mounted new mechanical safety structure, more convenient to operate and safer to use. Боковая новая механическая конструкция безопасности, более удобная в эксплуатации и более безопасная в использовании |

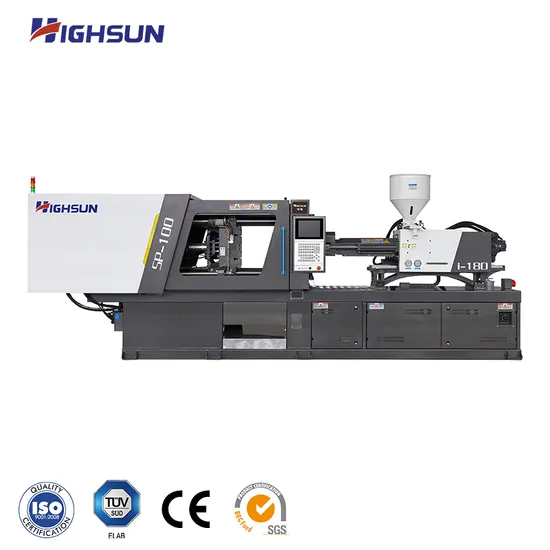

| SP100/i180 | SP100/i390 | SP130/i520 | SP160/i650 | SP200/i810 | SP250/i1000 | SP300/i1620 | SP350/i2300 | |||||||||||||||||||
| Injection Unit | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | D | |
| Screw diameter | mm | 22 | 25 | 28 | 32 | 36 | 40 | 36 | 40 | 45 | 40 | 45 | 50 | 45 | 50 | 55 | 50 | 55 | 60 | 55 | 60 | 65 | 60 | 65 | 70 | 75 |
| Screw L/D ratio | L/D | 21 | 21 | 21 | 23.6 | 21 | 21 | 23.3 | 21 | 21 | 22.5 | 20 | 20 | 22.2 | 20 | 20 | 22 | 20 | 20 | 21.8 | 20 | 20 | 21.6 | 20 | 20 | 18.6 |
| Injection capacity in theory | cm³ | 41 | 53 | 67 | 144 | 183 | 226 | 203 | 251 | 318 | 282 | 357 | 441 | 357 | 441 | 534 | 490 | 593 | 706 | 688 | 819 | 962 | 989 | 1161 | 1346 | 1546 |
| Injection weight(PS) | g | 38 | 49 | 61 | 131 | 167 | 206 | 185 | 228 | 289 | 257 | 325 | 402 | 325 | 402 | 486 | 446 | 540 | 643 | 626 | 746 | 875 | 900 | 1056 | 1225 | 1407 |
| Injection pressure | MPa | 439 | 340 | 271 | 239 | 189 | 153 | 230 | 186 | 147 | 234 | 185 | 150 | 229 | 186 | 153 | 236 | 194 | 163 | 239 | 201 | 171 | 233 | 198 | 171 | 149 |
| Injection velocity | g/s | 48 | 63 | 79 | 71 | 90 | 111 | 94 | 116 | 147 | 130 | 164 | 203 | 167 | 206 | 249 | 204 | 247 | 294 | 232 | 276 | 324 | 312 | 367 | 425 | 488 |
| Plasticizing capacity | g/s | 3.2 | 4.6 | 6.3 | 9 | 12 | 16 | 12 | 18 | 24 | 12 | 17 | 22 | 20 | 24 | 31 | 24 | 31 | 40 | 31 | 38 | 45 | 40 | 48 | 56 | 62 |
| Screw speed | rpm | 300 | 250 | 270 | 230 | 210 | 210 | 210 | 200 | |||||||||||||||||
| Clamping Unit | ||||||||||||||||||||||||||
| Clamping force | KN | 1000 | 1300 | 1600 | 2000 | 2500 | 3000 | 3500 | ||||||||||||||||||
| Moving mould-plate stroke | mm | 350 | 410 | 470 | 540 | 580 | 650 | 750 | ||||||||||||||||||
| Max.Mould height | mm | 400 | 460 | 550 | 600 | 650 | 700 | 750 | ||||||||||||||||||
| Min.Mould height | mm | 150 | 150 | 180 | 200 | 250 | 250 | 250 | ||||||||||||||||||
| Space between tie-bars | mm | 360x360 | 420x420 | 470x470 | 530x530 | 580x580 | 630x630 | 720x720 | ||||||||||||||||||
| Hydraulic ejector force | KN | 49 | 49 | 67 | 67 | 87 | 87 | 125 | ||||||||||||||||||
| Hydraulic ejector stroke | mm | 120 | 120 | 150 | 150 | 160 | 160 | 180 | ||||||||||||||||||
| Ejector number | n | 5 | 5 | 5 | 9 | 13 | 13 | 13 | ||||||||||||||||||
| Other | ||||||||||||||||||||||||||
| Pump pressure | MPa | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | |||||||||||||||||
| Driving power | KW | 15 | 15 | 22 | 30 | 30 | 37 | 45 | 55 | |||||||||||||||||
| Heating capacity | KW | 7 | 10.5 | 10.95 | 12.95 | 13.55 | 16.83 | 18.15 | 23 | |||||||||||||||||
| Machine dimension | m | 4.16x1.18x1.78 | 4.23x1.18x1.81 | 4.53x1.25x1.95 | 5.30x1.34x2.10 | 5.70x1.47x2.17 | 6.04x1.60x2.28 | 7.14x1.75x2.4 | 7.4x1.9x2.3 | |||||||||||||||||
| Machine weight | t | 3.1 | 3.3 | 4 | 5.1 | 7.4 | 9 | 10 | 14,5 | |||||||||||||||||
| Oil tank capacity | L | 235 | 235 | 253 | 270 | 280 | 300 | 400 | 680 | |||||||||||||||||
