High Quality and Good Outlook Steel Wall Panel Profiling Folding Roll Forming Machine

Product Description

Product Description

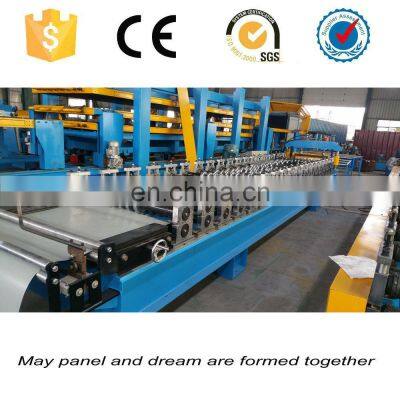

Wall Panel Roll Forming Machine
I. Technical Data:
1. Suitable material: galvanized steel, colored steel, etc
2. Machine work speed: 8-15m/min
3. Power supply: AC380V±10%, 50Hz, 3 phase
4. Main line dimension: 13m × 1.8m × 1.8m
5. Total gross weight: approx 7 tons
II. Work Flow
Decoiling – roll forming – cutting – product table
III. Complete Components
MANUAL UNCOILER 1 SET
1. Un-coiler type: manual operation for expansion and contraction of mandrels
2. Coil inner diameter: 460--520mm
3. Max. coil outer diameter: 1400mm
4. Capacity: max 5 tons
ROLL FORMING MACHINE 1 SET
1. Forming raw material width: 1000-1250mm
2. Forming stands: 18 stands
3. Size of roll shaft: 85mm, 45 steel, heat treatment
4. Roller material: high grade 45 steel, chrome plating 0.05mm
5. Wallboard steel structure: 18mm thickness
6. Base frame: 350 H-shaped steel welded structure
7. Bearing: ZWZ, China famous brand
8. Main power: 5.5KW
9. Transmission way: 1” chain transmission, Chain material: 45# steel, heat treatment
10. Stand structure: standard size pole column and bearing seat are chromeplated, good quality with good outlook.
11. Length controller: encoder, Omron brand
Hydraulic Cutter 1 Set
1. Hydraulic power pack: 4KW
2. Pressure: 16Mpa
3. Cutting blade material: Cr12Mov, quenching HRC58-62°
4. Length: you can cut any length you want
5. Length tolerance: ±1mm
6. Length controller: encoder
PRODUCT TABLE 1 SET
1. No power simple roll table
2. 2m X 2 pcs
Packaging & Shipping
one 40 GP container for shipment
seaworthy nude packing, using steel wire and wood bock to fix the machine inside container, and using the film cover the machine for dustproof

---
