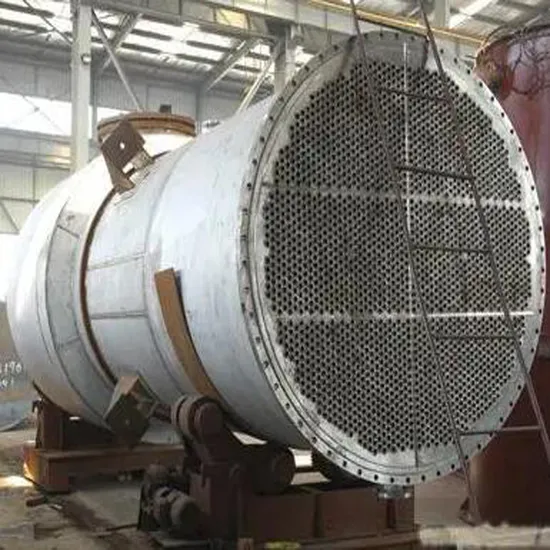

Carbon and Stainless Steel, Titanium Shell and Tube Heat Exchanger

Product Description

HEAT EXCHANGER FABRICATION CUSTOM FABRICATED HEAT EXCHANGERS
GYRO is an industry leader in custom design and fabrication of shell and tube heat exchangers, including:
Fixed Tubesheet: Two stationary tubesheets attached to the shell, a bundle of straight tubes is connected between the tubesheets and contain baffles to direct the flow around the tubes in order to generate the required heat transfer. A channel cover assembly is attached to each tubesheet.
Floating Tubesheet: This design is similar to the Fixed Tubesheet design except one tubesheet is allowed to move axially within the shell while the other tubesheet is fixed. This configuration allows for the tube bundle to be removable. U-Tube: Consists of straight length tubes bent into a U-shape with both ends terminating at the tubesheet. The tube bundle is fitted with supports or flow baffles. The tubesheet/tube bundle is placed in the shell and bolted between the head flange and shell body flange. A head assembly is required to direct the fluid in and out through tube bundle. This configuration allows for the entire tube bundle to be removable. SOFTWARE
HTRI: Thermal Rating Calculation Software Compress: Pressure Vessel Mechanical Design Software BUILT TO THE HIGHEST STANDARDS

All Exchangers are designed to standard TEMA configurations designed in accordance with ASME Code, Section VIII, Division 1.
TEMA class R, C & B API-660 MATERIALS
Stainless Steel Carbon Steel Nickel Alloy Duplex STATE-OF-THE-ART CNC

Our high-speed milling and drilling machine is designed to provide outstanding close tolerance machining:
Quickmill Intimidator 96: Superior solution for large part machining and drilling accuracy that provides a powerful, precise tool that performs flawlessly time after time. Bed size of 96" x 185-1/2" Gyro is here to serve you and provide the highest quality custom built Shell & Tube Heat Exchangers to meet your application's requirements. We welcome the opportunity to provide you a quote.
CONTACT US
Call us today to learn more about our custom engineering and fabrication services and talk about your upcoming distillation columns or towers project - or request a quote below.

REFERENCE LIST
Material Choosen	Equipment list
SS.C.S Steel	Pressure vessel
Titanium Alloy	Heat exchanger
Nickel Alloy	Reactor/Reaction Kettle
Zirconia	Distillation Column
Inconel	Surface condenser
Hastelloy B,C,G	Gas Station/OEM Service

Product Description
CONTACT US: ZIBO GYRO INDUSTRY



Location: Zibo City, Shandong Province China.

---
