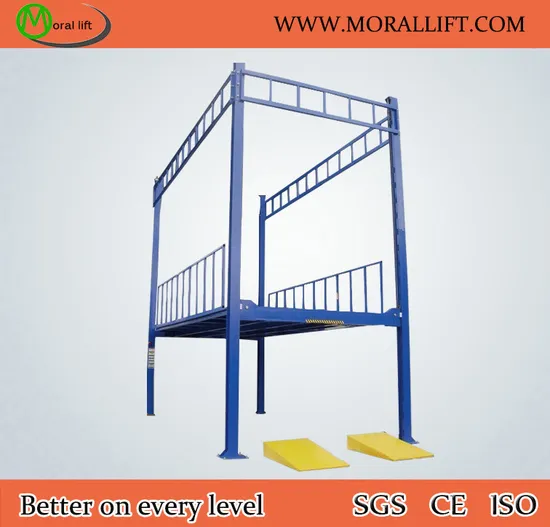

CE Approval Portable Hydraulic 4 Post Car Lift

Product Description

CE Approval Portable Hydraulic 4 Post Car Lift
Main Features:
1. Power supply 220 VAC, 3 Phases 60 Hz/ local power
2. Total capacity 4,000 kilograms
3. Size of platform 5000 X 2500 mms. Diamond steel sheet metal
4. Stops with limit switch control system
Main Descriptions:
The product has reasonable structure,stability,high reliablity,durability,easy operation and maintenance.
1. This is a kind of car lift,using vertical table lift.
2. Self-standing and self-support structure.
3. Hydraulic cylinder+ steel chains drive system+steel wire rope.
4. High precision and stable hydraulic drive system.
5. Automatic shut-off if operator releases the button switch.
6. Double chain design for higher safety.
7. High density chains with longer service lift.
8. Remote control is optional.
9. Top quality checkered plate.
10. Hydraulic overloading protection available.
11. Guarantee period: 12 months. We supply spare parts free and supply technical supporting all the time.

Applications:
It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; It is installed in the pit or the ground floor to convey
the goods from one working level to another. The control panels are available at
the designated floors and one the lift platforms.
Security measures:

1.Falling protector.
When the platform works,falling protector can prevent suddenly falling.
2. Spillover valve built-in the the hydraulic pump.
To make extra oil flow to oil tank through the valve,it is also called safety valve.
3.Wire rope.
Consider on safety,when platform duo to improper operation or sudden drop, the
wire rope can prevent dropping.
4.The lift is equipped with emergency decline device.
Mode: manual and automatic.

Model	SJD
Lifting capacity	3000kg
Lifting height	2500mm
Platform size	5900 X 2500 mms. ( Diamond steel sheet metal )
Motor power	5.5kw
Power supply	AC 220V/380V 50HZ/60HZ
Speed	100mm/s
Weight	1150KG

---
