3 in 1 multi-functional water flow sensor combines water flow, water temperature and TDS with 1/4'' or 3/8''

Product Description

Product Description
3 in 1 multi-functional water flow sensor combines water flow, water temperature and TDS with 1/4'' or 3/8''
Product description

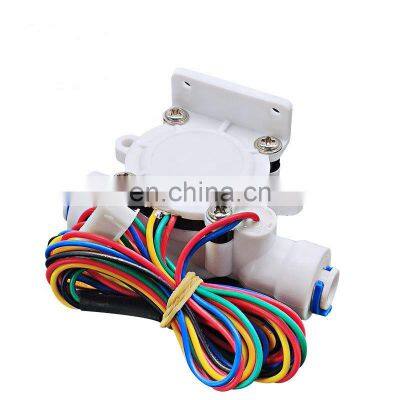

this is Hall flow type water flow sensor, to detect the water flow, water quality and water temperature. Can use it in water dispenser, coffee machine, etc. Both connection ports are 1/4'' or 3/8'', quick fitting types. This one have 3 functions---water flow, TDS and water temperature monitor.
water flow sensor
Specification

Water pressure resistant	0.35MPa	Operating voltage range	DC5 to 24V
Insulation resistance	>100MΩ	Accuracy	0.3 to 10L/min
Flow pulse characteristics	f=(15*Q-2)±2% Q=L/MIN	Output Pulse High Level	>DC 4.7V(Input Voltage DC 5V)
Customization	available	Output pulse space ratio	50%±10%

Features
1, the appearance of this product is light, small size, easy to install.
2, high accurancy
Package
Normally put all of them inthe carton

---
