Basic Info.
Application
Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Certification
CE, ISO 9001
Name
Single/Double Conlumn Lifting Machine
Max Working Platform Height
5.7m
Transport Package
Wooden Case
Specification
1.28*0.8*1.75m
Packaging & Delivery
Package Size
138.00cm * 90.00cm * 185.00cm
Package Gross Weight
320.000kg
Product Description
Product Description

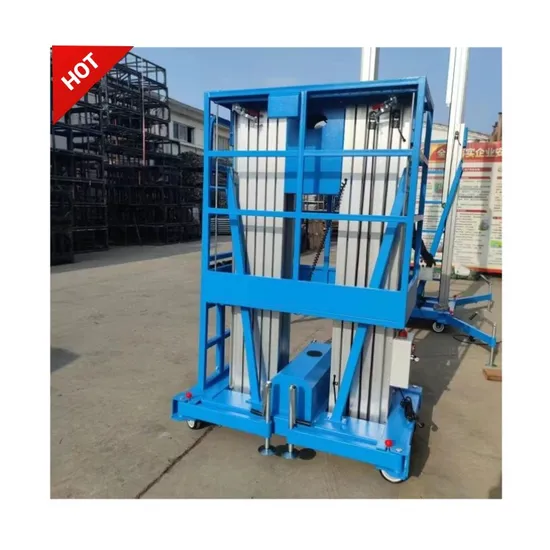

Aluminum Portable lifter For One Man lift Platform Truck Loading is high-quality lifting platform with capacity 100-200kg, the working height 4-14m, We can also provide customer two types option like wireless controller and durable battery and we will try to fulfill all customers' need for its load weight and height lift, Single Man Lift is widely use in outdoors and indoors working, such as warehouse, home, hotel, airport and so on. It becomes a ideal equipment for aerial working.
Product Parameters
Single Column
| Model | KLSL4-100 | KLSL6-100 | KLSL8-100 | KLSL9-100 | KLSL10-100 |
| Rated load | 117kg | 117kg | 117kg | 117KG | 117kg |
| Max working platform height | 5.7m | 7.7m | 9.7m | 10.7m | 11.7m |
| Max platform | 4m | 6m | 8m | 9m | 10m |
| Platform size | 0.6*0.6m | 0.6*0.6m | 0.6*0.6m | 0.6*0.6m | 0.6*0.6m |
| Dimension | 1.28*0.8*1.75m | 1.28*0.8*1.9m | 1.28*0.8*1.98m | 0.36*0.9*2.0m | 1.36*0.9*2.1m |
| Net weight | 250kg | 280kg | 300kg | 320kg | 340kg |
| Motor Power | 0.75kw | 0.75kw | 0.75kw | 1.1kw | 1.1kw |
| Voltage | 220V | 220V | 220V | 220V | 220V |
Double column
| Model | KLDL4-200 | KLDL6-200 | KLDL8-200 | KLDL10-200 | KLDL12-200 | KLDL14-200 |
| Rated load | 237kg | 237kg | 237kg | 237kg | 237kg | 237kg |
| Max working platform height | 5.7m | 7.7m | 9.7m | 11.7m | 13.7m | 15.7m |
| Max platform | 4m | 6m | 8m | 10m | 12m | 14m |
| Platform size | 1.1*0.6m | 1.1*0.6m | 1.15*0.6m | 1.35*0.6m | 1.45*0.6m | 1.45*0.6m |
| Dimension | 1.3*0.9*1.75m | 1.3*0.9*1.9m | 1.36*0.9*2.0m | 1.56*0.97*2.0m | 1.66*0.97*2.0m | 1.66*0.97*2.35m |
| Net weight | 380kg | 420kg | 550kg | 600kg | 700kg | 800kg |
| Motor Power | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
Detailed Photos
Product display
