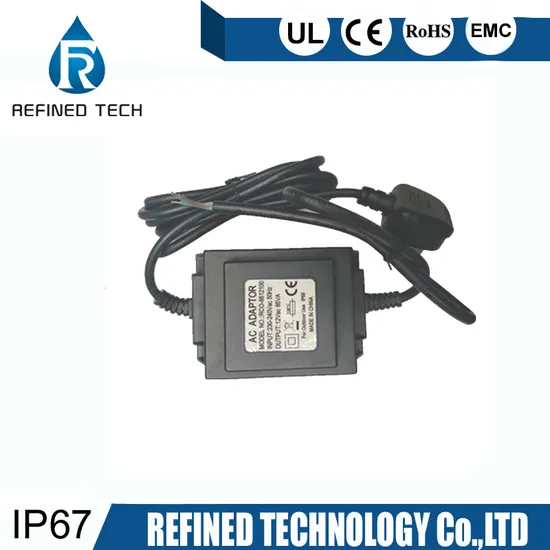

Waterproof Encapsulated Lighting Toroidal Power Supply Transformer

Product Description

Product Description
Name : 100W 300W Guardrail Waterproof Transformer
10VA to 350VA Waterproof Toroidal Transformer for outdoor lighting
Specification :

Model	Power	Input Voltage(V)	Output Voltage(V)/A
RCO-10W	10W	110-120VAC 230-240VAC 50/60Hz	12VAC 0.83A/ 24VAC 0.42A
RCO-15W	15W		12VAC 1.25A/ 24VAC 0.62A
RCO-20W	20W		12VAC 1.66A/ 24VAC 0.83A
RCO-25W	25W		12VAC 2A/ 24VAC 1A
RCO-30W	30W		12VAC 2.5A/ 24VAC 1.25A
RCO-40W	40W		12VAC 3.33A/ 24VAC 1.66A
RCO-45W	45W		12VAC 3.75A/ 24VAC 1.87A
RCO-50W	50W		12VAC 4.16A/ 24VAC 2.08A
RCO-60W	60W		12VAC 5A/ 24VAC 2.5A
RCO-70W	70W		12VAC 5.83A/ 24VAC 2.91A
RCO-80W	80W		12VAC 6.66A/ 24VAC 3.33A
RCO-85W	85W		12VAC 7A/ 24VAC 3.5A
RCO-100W	100W		12VAC 8.3A/ 24VAC 4.16A
RCO-120W	120W		12VAC 10A/ 24VAC 5A
RCO-150W	150W		12VAC 12.5A/ 24VAC 6.25A
RCO-200W	200W		12VAC 16.66A/ 24VAC 8.33A
RCO-250W	250W		12VAC 20.83A/ 24VAC 10.42A
RCO-300W	300W		12VAC 25A/ 24VAC 12.5A
RCO-350W	350W		12VAC 29.16A/ 24VAC 14.58A

1).WORKING AND SAFETY PROTEETION
Electrostatic Shield Magnetic Shield
Temperature Protection Over Current Protection
2).INSULATION
Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩMIN.
HI-POT TEST(100% test):Pass ourdielectric strength test, without any breakdown
Pri.~sec. AC 3.8kV for 5 seconds (leakage current 5mAMAX)
3).TEMPERATURE RISE
Ta=25ºCTest by resistance method At rated load
PRI.& SEC. WINDINGS'TEMPERATURE RISE 75ºCMAX.
4).MAJOR MEASUREMENT FACILITIES:
HI-POT TESTER: CJ2670
INSULATION-RESISTANCE METER: ZC-7
VOL TMETER: T19-V
DC-RESISTANCE METER: QJ44
AMPEREMETER: T19/1-A

5). MAIN PARAMETERS:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:10VA-350VA

6) Waterproof toroidal Transformer's materials:
* Annular core: Cold rolling directional silicon steel
* Insulation protection: Mylar
* Core Insulation: Polyester 7C
* Primary/Secondary Winding: Enamelled copper wire
* Terminal cannula: PVC canula
* Termial uderlay: Polyester 19C
* Temperature Protection: Thermal Switch
* Pri.Insulation: Polyester 7C
* Insulation protection: Mylar
* Coating insulation: Polyester 5C
* Lead: UL WIRE/European standard wire
* Potted resin: Potted resin
* Body: PP+GFRP
Advantages:
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance

Applications: Garden light
Swimming pool
LED underwater lamp
LED Ground light
Outdoor power Supply
Humidifier

Certifications
Packaging & Shipping
Company Profile
