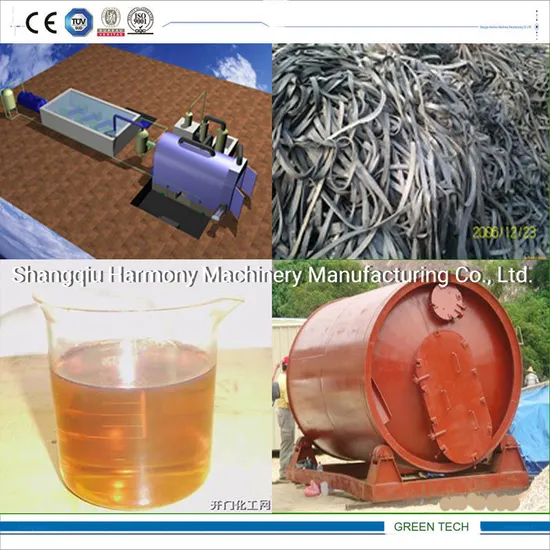

15ton Tire to Diesel Refinery Machine

Product Description

1.Technical parameters

NO.	Name	Parameter
1	The raw materials:	Tyres,plastic,rubber
2	Daily capacity:	15 Ton/day
3	The size of reactor	2800*8000mm 16mm thickness
4	Reactor material	Q345R
5	Average oil productivity:	30%-50%,
6	Average carbon productivity:	30%-35%
7	Average steel productivity:	10%-15%
8	Average waste-gas productivity:	5-8%
9	pyrolysis time	10-12 hours
10	Discharge time	1.5 hour
11	Feeding time	3 hour
12.	Cooling time	3 hours
13	Working pressure	Normal /slightly negative
14	Power	21 kw
15	Fuel	Coal. Wood, gas etc
16	Working area	1000 square meters
17	Total weight	40 000kgs
18	Reactor rotate speed	0.25-0.4/min
19.	Noise	No less than 85DB
20.	Certificate	CE.,ISO

2. Major parts :
reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board
3. Work flow
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

5. Plant features:
1)Carbon slag using new tech, slag in sealing way, keep sure no carbon powder flay in air, completely pollution free. Carbon slag automatic and slag more fast than normal design
2)Improved an simplified design of plant, more easy to use, and cut down plant cost
3)All parts including small parts we use high standard material to keep our quality for long term usage.
4) Dedust system use latest design, no black smoke emit to air by chimney.
6.oil parameter

Tire oil parameter
Item	Tire Oil
Density g/cm3	0.90-0.92
Freezing Point oC	-10
flash point oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500

7. profit analysis

Profit Analysis Report of waste tires oil extraction machine
1set 10 tons capacity machine as sample
NO.	Iterm	Cost of per batch
1	10 tons of waste tire	10T* 130$/T= 1300$
2	0.3 tons of coal	0.3* 97.6$/T= 29.28$
3	water	0.4$
4	electricity	15.6$
5	workers	4* 16.3$= 65.2$
total cost		1410.48$
NO.	Iterm	Income
1	Crude oil (40%-45%)	10T* 40%* 715.5$/T= 2862$
2	Carbon black (30%-35)	10T* 30%* 73$/T= 219$
3	Steel wire (10%-15%)	10T* 10%* 300$/T= 300$
4	Gross profit	3381$
5	Daily net profit	1970.52$
6	Monthly net profit	43351.44$
7	Yearly net profit	433514.4$

---
