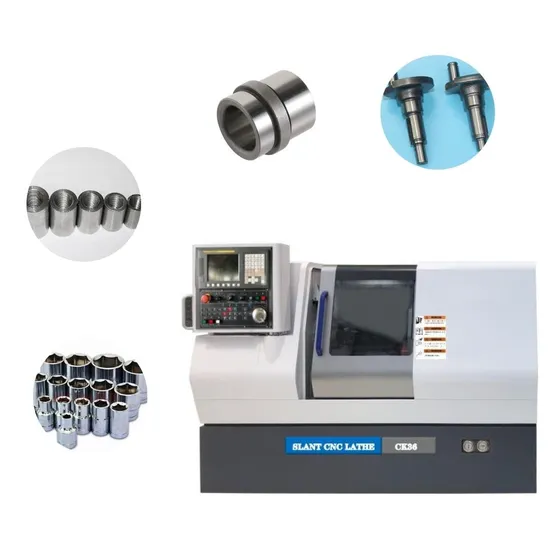

Multi-Function Turning with High Rigidity Ck36 Slant CNC Lathe Fabricado En China

Product Description

Product Feature:
1.High precision slant CNC lathe with Taiwan screw & linear guideway.
2.High precision cartridge type spindle ensure the rigidity and precision.
3.Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.
4.Siemens,Fanus, Syntec, Fagor controller as optional.
5.Monoblock cast iron of the whole machine ensure high rigidity.

Machine Type	CK36
Distance between centers	350mm
Max swing over bed	Φ360mm
Max swing over cross slide	Φ130mm
Max Spindle speed	4000rpm
Spindle bore	Φ56mm
Spindle nose	A2-5
Chuck diameter	Φ160mm
X axis travel	470mm
Z axis travel	400mm
X/Z axis Rapid traverse	15/15 m/min
Turret Type	Gang Tool
Tool station number	6
Tool holder	20x20mm
Tailstock Sleeve	No tailstock
External diameter
Max travel
Taper of bore
Spindle motor power	5.5KW
Coolant pump power	120W
Type of guideway&Screw	Taiwan linear guideway&screw
Overall dimension(LxWxH)	2650 x 1600 x 1750mm
Packing dimension(LxWxH)	2860 x 1800 x 2050mm
Net/Gross weight	2000/2200kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
