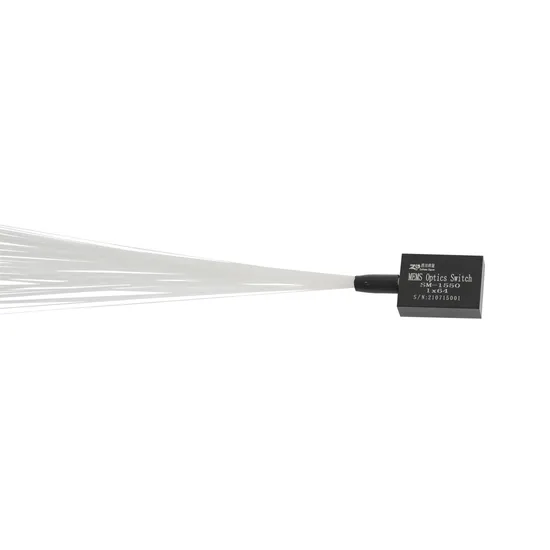

Mems Optic Switch 1xn with for Good Stability for System Protection

US$500.00 1 Piece (MOQ)

Basic Info.

Model NO.
MEMS Optic Switch 1XN
Certification
ISO, RoHS
Condition
New
Transport Package
Box
Specification
Small
Trademark
ZG
Origin
Mianyang, China

Product Description

Features
No moving components
Quickly switching speed
Extremely stable latching module
Low loss
Good Stability&Reliability
Applications
Passive optical network
Optical Protection System
Measuring System
Network monitoring
Specifications Unit Parameter
Operating wavelength nm 1260-1650
Center wavelength nm 1310 or 1550
Insertion loss dB ≤1.0(typical:0.8)
Wavelength dependent loss dB ≤0.3
Temperature dependent loss dB ≤0.3
Polarization dependent loss dB ≤0.15
Return loss dB ≥50
Crosstalk value dB ≥50
Repeatability dB ≤±0.05
Switching time ms ≤10
Service life times ≥10 billion
Control voltage V 5
Maximum optical power mw ≤500
Operating temperature ºC -20~+70
Storage temperature ºC -40~+85
Size mm 40x26x16
All parameters without connector's loss,and it isn't include the loss in special environment.
Optical path
Dimension:(mm)
Pin Definition
Ordering information
1×N A B C D F E
Channel Wavelength Fiber type Voltage Casing Fiber length Connector
N:1~x 13: 1310nm SM: Single Mode 5-5V 025: Φ0.25mm 05: 0.5m 1:SC/UPC
15: 1550nm X:Others 09: Φ0.9mm 10: 1.0m 2:SC/APC
13/15: 1310+1550nm X: Others 15: 1.5m 3:LC/UPC
X:Other X:Others 4:FC/UPC
5:FC/APC
X:Others
