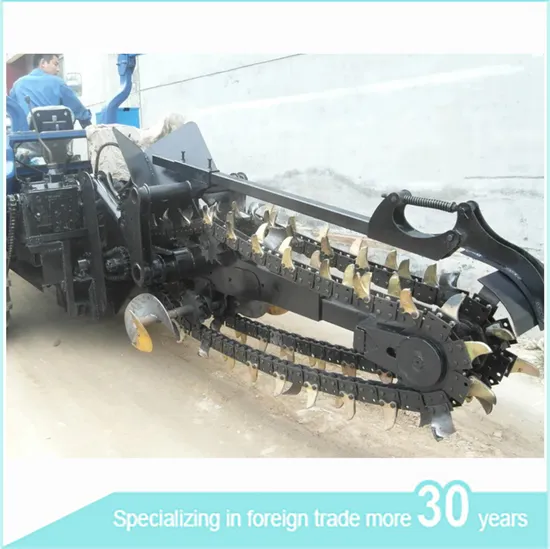

Tractor Pto Trencher Double Chain Trencher

Product Description

Product Description
1. This is a new series trenching/ digging equipment, supporting the use of small/middle size 4 wheel tractor. This ditch machine moving forward slowly by establishing independent hydraulic system on the ordinary tractor.
2. This trencher adopt the rear furrow opener, it is made up of the power and transmission system, walking system,gear box, furrowing cutting knife, etc. Widely applied for farm project and construction project and other pipe laying project .
3. Advantage: This trencher has compact and simple structure, small size, easy to operate, high efficiency, long life time,easy maintenance.
Application: The trencher is widely used to furrow for planting deep root crops such as yam , etc.
Welcome to contact us if you want to know more about that~
Product Parameters

trencher specification	1	Name	Single Chain Trencher	Double Chain Trencher
	2	Max trenching width	0~30cm	30~75cm
	3	Max trenching depth	0-220cm	0-220cm
	4	Suspension Type	PTO	PTO
	5	Power	≥50hp	≥150hp
	6	Power Source	tractor	Tractor
	7	Color	Black/Red/as required	Black/Red/as required
	8	Working Speed	100-400m/H	100-400m/H
	9	Function Speed	Ditching Device	Ditching Device
	10	Working Environment	Soft Soil/Normal Land	Soft Soil/Normal Land
	11	Weight for trencher	About 800kg	About 1200kg
	12	OEM	Yes	Yes

Detailed Photos
1 rear tail bar
2 scraper plate
3 rear wheel
4 chain
5 alloy tool
6 manganese steel cutter
7 sub-trench
8 moving frame
9 hydraulic cylinder
10 main frame
11 gearbox
12 sub-slab
13 main sprocket wheel
14 dragon wheel

Intermediate support (Adjust the distance between the trencher and the tractor) the suspension arm( left and right, Tractor standard equipped, Support the arm of the whole ditching machine) The PTO (power transmission part)

---
