Manufacturer in China of High Quality C-Type Structure High-Speed CNC Steel Plate Drilling Machine Model HD1280 Diameter 50mm Spindle 22kw

Product Description

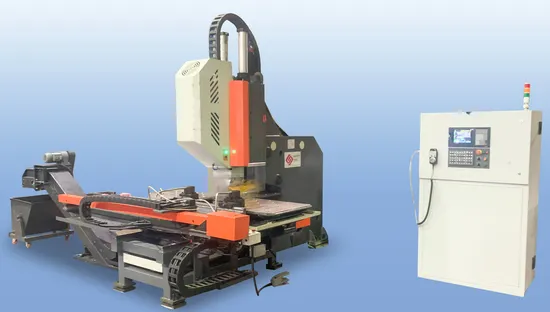

High-speed CNC Steel Plate Drilling machine, HD1208
Characteristic: 1. This machine is used for drilling metal plates in electric power, communication, automotive, metal engineering, and other industries.
2. The machine tool housing is a C-shaped structure made of two steel plates, with high hardness, compact size, light weight, and spacious working space.
3. The clamping system is driven by a gyroscope system, and the clamping device can be used for plates of different sizes, equipped with a billet base plate, and the workpiece is supported by a ball bracket.
4. The X&Y axis drive mechanism uses the SWPP of the servo motor. The 2-axis control CNC can determine the punch position, ensuring high machining accuracy
5. The CNC machining process is simple to operate, and can automatically produce large quantities of parts with high accuracy
6. Simple programming and the ability to write programs directly using special software can also be written by hand
7. This machine adopts Taiwan's "Kenturn" precision internal cooling spindle, with a BT50 spindle tapered hole, and a hydraulic spring stretching mechanism. The hydraulic cylinder can freely grip the knife, making tool replacement convenient.
Technical parameters:

Model		HD1280
Processing size	Max. Size of plate(мм)	1200×800mm
	Min. Size (мм)	100X100X8mm
	Min.distance from margin to holes (мм)	25mm
Drilling capacity	Max. Diameter of hole (мм)	Φ50
	Spindle	BT50
	Max. Drilling thickness (мм)	60mm
	Spindle speed	2000rpm
	Power of spindel (KW)	22
Control system		PLC + computer
Processing accuracy		Compliance with standards GB2694-2010
Weight of machine(T)		~7.8

Delivering photos:

---
