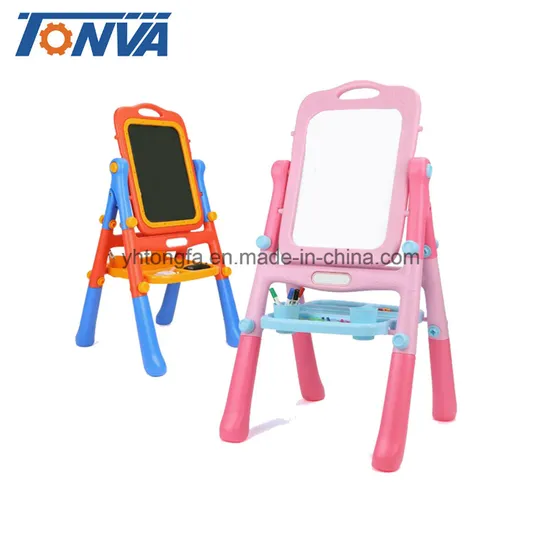

Tonva 60 Liter Children Toy Plastic Item Making Machine Large Sized Blow Molding Machine

Product Description

1.Overview of TVA-60L
1.1 basic specification
1) single station
2) single layer (optional)
3) single color (optional)
4) 90mm screw / 37kw screw motor
5) PE etc material
1.2 working condition
1) Power supply: 380VAC/50HZ (depending on client's country)
2) Water cooling: 20ºC
3) Air source: 0.8Mpa, 0.8m³/min
1.3 Application

1.4 technical characteristic
The machine is appliaction for HDPE/HMWHDPE raw material, it is widely used in plastic barrel and other plastic hollow products.
2.Parameter

Category	Item	Unit	TVA-60L
Basic specification	Raw material	--	PE etc
	Container Capacity Max	L	60
	Dimension	m	5.2x2.4x3.6
	Total weight	T	13
Extrusion system	Diameter of screw	mm	90
	Screw L/D ratio	L/D	25:1
	Plasticzing capacity	kg/h	140-160
	Heating zones	pcs	5
	Heating power	KW	23
	Screw motor	KW	37
Die head	Die head material	--	38CrMoAlA
	Heating zones	pcs	4
	Heating power	KW	13
	Accumulator capacity	L	6.6
Clamping system	Mould platen size	mm	900x1050
	Clamping force	KN	300
	Clamping range	KN	400-1050
Power consumption	Air pressure	Mpa	0.8
	Air consumption	m3/min	0.8
	Cooling water	m3/h	80
	Oil pimp power	KW	24
	Total power	KW	95.5

3.Our Company
TONVA company was established at 1993. The company is one of the largest manufactures of Extrusion Blow Molding Machine, Stretch blow molding machine and molds in China.
Our clients in a wide range of plastic industry sectors, such as: daily using, toy, chemical container, agrochemical, pharmaceuticals, automobile, food, traffic using etc., volume range from 3ml to 5000L, single layer to 6layers, single color to three colors, which are all available on TONVA machine production, clients from more than 80 countries, have to come rely on TONVA technologies and service with machine good quality and reliability.
4. Contact
Contact: Hebe Tong

---
