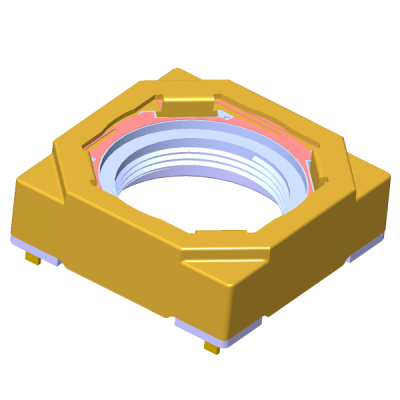

| Technical Parameter of Voice Coil Motor | ||||||
| No. | Model No. | 03-006-001 | 03-006-002 | 03-006-011 | 03-006-012 | 03-006-031 |
| 1 | Dimension | 8.5×8.5×2.6mm | 8.5×8.5×2.82mm | 8.5×8.5×2.8mm | 8.5×8.5×2.9mm | 8.5×8.5×2.9mm |
| 2 | Match Lens | M5.0xP0.25 | M5.5xP0.25 | M6.0xP0.25 | ||
| 3 | Resolution | 5MP | ||||
| 4 | Weight | 0.5g | ||||
| 5 | Weight of Lens | 0.12g Max. | ||||
| 6 | Rated Current | 80mA | ||||
| 7 | Max. Current | 100mA | ||||
| 8 | Insulation Resistance | 1MΩ Min. | ||||
| 9 | Resistance Between Terminals | 14~25Ω | ||||
| 10 | Torque | 20~120gf-cm | ||||
| 11 | Rated Stroke | 200μm Min. (@90mA) | ||||
| 12 | Starting Current | 20~40mA | ||||
| 13 | Sensitivity | 3~8μm/mA | ||||
| 14 | Hysteresis | 10μm Max. | ||||
| 15 | Dynamic Tilt | 15' Max. | ||||
| 16 | Posture Deviation | 50μm Max. | ||||
| 17 | Linearity | 15μm Max. | ||||
| 18 | AF Current | 10μm Max. | ||||
| Technical Parameter of Voice Coil Motor | |||||
| No. | Model No. | 03-006-064 | 03-006-065 | 03-006-066 | 03-006-067 |
| 1 | Dimension | 8.5×8.5×2.6mm | 8.5×8.5×2.8mm | 8.5×8.5×2.9mm | 8.5×8.5×3.3mm |
| 2 | Match Lens | M6.0xP0.25 | |||
| 3 | Resolution | 8MP | |||
| 4 | Weight | 0.5g | |||
| 5 | Weight of Lens | 0.12g Max. | |||
| 6 | Rated Current | 80mA | |||
| 7 | Max. Current | 100mA | |||
| 8 | Insulation Resistance | 1MΩ Min. | |||
| 9 | Resistance Between Terminals | 12~20Ω | 15~25Ω | ||
| 10 | Torque | 20~120gf-cm | |||
| 11 | Rated Stroke | 200μm Min. (@90mA) | |||
| 12 | Starting Current | 20~40mA | |||
| 13 | Sensitivity | 3~8μm/mA | |||
| 14 | Hysteresis | 10μm Max. | |||
| 15 | Dynamic Tilt | 12' Max. | |||
| 16 | Posture Deviation | 50μm Max. | |||
| 17 | Linearity | / | 15μm Max. | ||
| 18 | AF Current | 10μm Max. | |||
| Technical Parameter of Voice Coil Motor | ||||
| No. | Model No. | 03-006-072 | 03-006-073 | 03-006-074 |
| 1 | Dimension | 8.5×8.5×2.6mm | 8.5×8.5×2.8mm | 8.5×8.5×2.9mm |
| 2 | Match Lens | M6.5xP0.25 | ||
| 3 | Resolution | 13MP | ||
| 4 | Weight | 0.5g | ||
| 5 | Weight of Lens | 0.12g Max. | ||
| 6 | Rated Current | 80mA | ||
| 7 | Max. Current | 100mA | ||
| 8 | Insulation Resistance | 1MΩ Min. | ||
| 9 | Resistance Between Terminals | 12~23Ω | 10~20Ω | |
| 10 | Torque | 20~120gf-cm | ||
| 11 | Rated Stroke | 200μm Min. (@90mA) | ||
| 12 | Starting Current | 20~40mA | ||
| 13 | Sensitivity | 3~8μm/mA | ||
| 14 | Hysteresis | 10μm Max. | ±10μm | |
| 15 | Dynamic Tilt | 10' Max. | 9' Max. | |
| 16 | Posture Deviation | 50μm Max. | ±50μm | |
| 17 | Linearity | 15μm Max. | / | |
| 18 | AF Current | 10μm Max. | / | |
