Paper Cup Bowl Sleeve Forming Wrapping Machine

Product Description

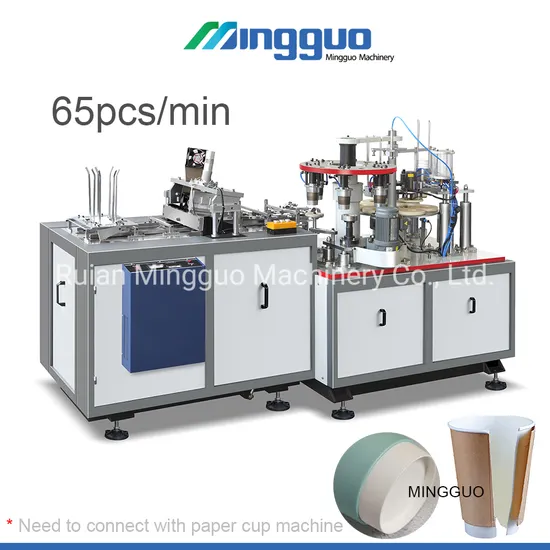

HC Double Wall Paper Cup Outer Forming Machine
Machine Description
MG-HC double wall paper cup outer machine is a multi-functional automatic veneer equipment. It passes through continuous processes processes such as multi-row automatic paper feeding, ultrasonic welding, robotic paper tube transfer, oil filling, bottom folding, knurling, cup falling, servo glue feeding, cylinder two-stage blanking and fitting, pressing, and cup/bowl unloading veneer. This machine adopts frequency conversion stepless speed regulation; adopts light-controlled non-contact switch to detect abnormal, realize automatic shutdown of failure, protect each part of the machine from collision, and improve the stability and life of the machine. The holding tube station adopts left an right independent cams to drive the left cup clamps. There is no noise during work, and the holding tube is stable and reliable. It is the latest domestic technology.
Machine Details
Technical Specification

Model	MG-HC
Cups Specifications	8-35oz
Paper Specfications	200-350GSM single/double PE coated paper
Production Capacity	50-65pcs/min
Voltage	220V/380V 50HZ
Total Power	2.5KW
Total Weight	1000KG
Dimensions	2000*1200*1500mm(L*W*H)
Shipping Details	By sea/air transportation according to customer need
Paper Cup Usage	Coffee cups, hollow cups, ripple cups, cappuccion cups, corrugated cups
Optional Equipmen	Paper cup machine,die cutting machine,paper bowl machine,cup top flatten machine, paper bowl machine and other products.

Samples
Pre-sales and After-sales Service
Pre-sales service a.Provide products and related consultation. b.Free provision of paper cup samples (excluding freight). c.Customers can visit the factory in person to visit the machine. After-sales service: a.Paper cup machine warranty: 1 year b.We can dispatch technologists to buyer's factory, guiding installation, adjustment for a period. c.We supply the consumable spare parts for free for one year use.
FAQ
1. What products can be made by your machines?
Tea cups, coffee cups, ice cream cups, noodle bowl, salad bowl, KFC bucket etc.
Almost all the regular or irregular paper containers for fast food and drinks

2. What volume of the cup/bowl/bucket that you can make?
From 2-190OZ, about 50-5000ml

3. Are you a source manufacturer?
Yes, any of the factory visit tour appointments at any time are acceptable and warmly welcomed

4. What about the payment term?
Usually 30%T/T in advance, 70% Balance before shipping

5. What should I let you know before getting a relatively accurate quotation?
--Sample pictures
--Specifications of cups (Top diameter, Bottom diameter, Height)
Draft is the best if possible.

--GSM of single/double PE coated paper
Warmly welcome to contact us
FOR more details and professional 1-to-1 service
