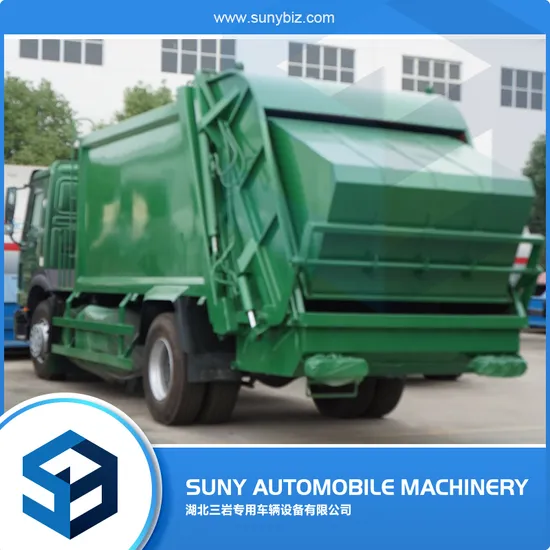

Sinotruck HOWO  4*2 12-14cbm  Compressed Refuse Truck

Product Description

Compressed garbage truck is mainly used for the collection and transport of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.It is produced with Germany technology. It's with the features of high system pressure, large compression force, high volume rate and large loading capacity, which could make loading capacity increase 5-7 times.With the function of high automatic degrees, quick loading speed, convenient, safe and reliable operation, and preventing re-pollution. SINOTRUCK HOWO 4*2 12-14cbm compressed garbage truck

Vehicle Description
Overall dimensions	8765×2500×3300mm
GVW	16000kg
Curb weight	8870kg
Loading weight	/
Chassis brand	HOWO
Traction type	4*2; Left hand drive

Up-parts Specification
Dustbin volume	12-14cbm
Material & thickness	Side	4mm Q345
	Bottom	5mm Q235A
Type of Rear garbage filler (Rear Turnover device)	1.Hanging trash bin
	2.Swing arm
	3.Dustpan
Control system	Electrically Controlled Hydraulic + Manual Hydraulic
Type of compactor	Fill, push and compression
Garbage compact density	0.9±0.05 T/m³
Sewage water tank	Rear	About 500L, on the bottom of rear filler
	Front	About 230L, on the front of garbage van
Max compact	≥141 KN
Max push	≥189 KN
Tailgate ascending Angle	~95°
Cycle of loading	≤40s
Cycle of discharge	≤45s
Hydraulic pressure system working pressure	16 Mpa
PLC	Importation PLC (Programmable controller)
Gear pump	Made in China
Multi-way valve	Air controlled, Made in China
Hydraulic oil cylinder	Made in China
Hydraulic rubber hose	Made in China

Chassis Description
Chassis model	ZZ1167M4647W
Cab	HW76-extended cab, single berth, adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sunroof, air-conditioner.
Wheelbase	4600mm
Tire specification	295/80R22.5
Tire quantity	6+1 units
Engine	Engine model	WD615.62
	Emission level	Euro 3
	Displacement/output	6870ml/196kw
	Horse power	266hp
Gear box	Model	HW13710
	Number of gears	10 forward gears & 2 reverse
Brake system	Service brake:dual-circuit pneumatic brake; Parking brake:energy storage spring air cutoff brake; Auxiliary brake:engine exhaust brake.
Axle	Front	HF-7T
	Rear	ST-16T, ratio 4.8/5.73
Suspension	Front	Leaf springs with shock abosorber
	Rear	Leaf springs with transverse stabilizer
Fuel tanker	Type	Aluminum Alloy tanker, with lockable cap
	Capacity	400L
