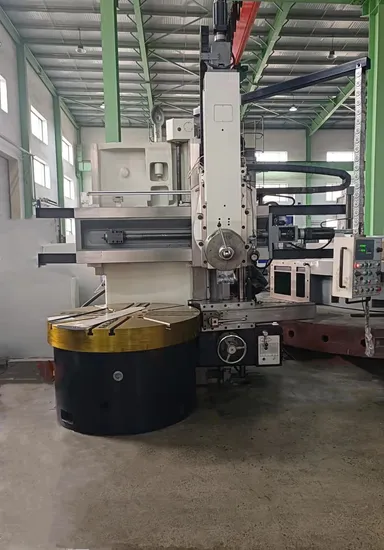

C5116 Metal Heavy Duty Vertical Lathe Machine

Product Description

Product Parameters
1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted,
severance of car wheel lathe.
2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing
is good.
3. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand
products in China.
4. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
5. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.

Parameter	C5116	Unit
Max. turning diameter of vertical tool post	1600	mm
Max. turning diameter of side tool post	1400	mm
Working table diameter	1400	mm
Max. height of work-piece	1500	mm
Max. weight of work-piece	5	t
Working table range of rotation speed	5-160	r/min
Working table step of rotation speed	16	step
vertical tool post cutting force	25	kn
Working table Max. torque	25	Kn. m
Horizontal travel of vertical tool post	915	mm
Vertical travel of vertical tool post	800	mm
Swing angle of vertical tool post	30	degree
Tool bar section size	30*40	mm
Power of main motor	30	kw
Weight of machine(approx.)	12.7	t
Dimensions of machine (L*W*H) (approx.)	2662*2800*3550	mm

Packing size

Box Name	Size approx. (L x W x H) (M)
lathe bed, gearbox	3200x 1750 x 1700
working table, base of table	1600 x 1600 x 1200
crossbeam, vertical tool post, motor	2800 x 1750 x 1200
