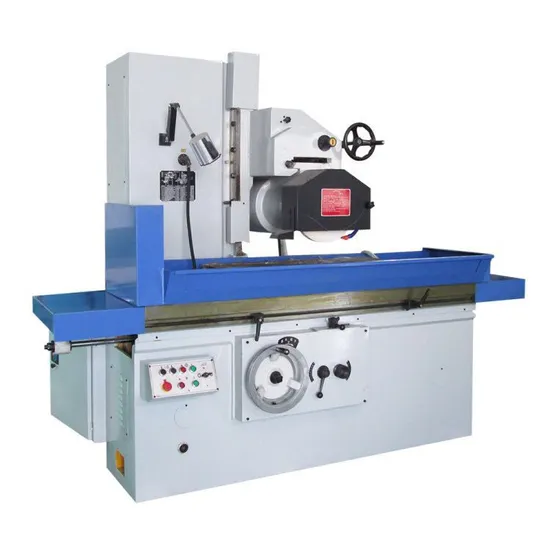

| Model | M7132*1000 | M7132*1600 | M7132*2000 | ||||
| Working table | Table size(L×W) | mm | 1000×320 | 1600×320 | 2000×320 | ||
| Max movement of working table(L× W) | mm | 1100 | 1700 | 2100 | |||
| T-Slot(number×width) | 3×18 | 3×18 | 3×18 | ||||
| Speed of working table | m/min | 3--25 | 3--25 | 3--25 | |||
| Grinding head | Max distance from spindle center to table surface | mm | 570 | 570 | 570 | ||
| Max travel of grinding head | Cross(Manual and hydraulic) | mm | 350 | 350 | 350 | ||
| Vertical(Manual) | mm | 400 | 400 | 400 | |||
| Spindle speed | rpm | 1440 | 1440 | 1440 | |||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ350×40×φ127 | φ350×40×φ127 | φ350×40×φ127 | |||
| Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | |||
| Grinding head feed per revolution of handwheel | mm | 1.00 | 1.00 | 1.00 | |||
| Total power | kw | 11 | 12 | 12 | |||
| Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.37 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Oil pump motor | Power | kw | 3 | 4 | 4 | ||
| Speed | r/min | 960 | 960 | 960 | |||
| Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | ||
| Speed | r/min | 2800 | 2800 | 2800 | |||
| Oil pump | Flow | L/min | 100 | 125 | 125 | ||
| Working pressure | MPa | 1.5 | 1.5 | 1.5 | |||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | ||
| Surface roughness | µm | Ra0.63 | Ra0.63 | Ra0.63 | |||
| Weight | N/G | kg | 3500/4000 | 4300/4900 | 4830/5300 | ||
| Overall dimension(L×W×H) | mm | 2630×1700×2100 | 4150×1700×2300 | 5000×2000×2350 | |||
| Cabinet Size : 2760×1750×2260MM Net Weight: 3500KG Gross Weight: 4000KG I. Main machine | ||||||
| Item no | Name | Specification or remark | Unit | Quantity | Remark | |
| 1 | Main machine | M7132 (320×1000) | Set | 1 | ||
| II. Attachment spare component | ||||||
| Item no | Name | Specification or remark | Unit | Quantity | Remark | |
| 1 | Coolant Mechanism | Flow: 22L/min JCB-22 | Set. | 1 | ||
| 2 | Electric Magnetic Chuck | 300×1000 | Pec. | 1 | ||
| 3 | Wheel Adopter and Wheel | 127ø GB46-ZR2-1- P350×40×127 | Set. | 1 | Fix on machine | |
| 4 | Iron Gasket | HJ×81-1 | Set. | 5 | ||
| 5 | Balance Shaft and Nuts | Ø32×270,M36×1.5 | Set. | 1 | Installed in the attachment | |
| 6 | Balance blocks and screws | M6×12 | Set. | 5 | ||
| 7 | Diamond Seating(No Diamond ) | Set. | 1 | |||
| 8 | Scratch Scrap Iron | Set | 1 | |||
| 9 | Hexagonal Socket Wrench | 46 | Set | 1 | ||
| 10 | Round Nut Spanner | 78-85 | Set. | 1 | ||
| 11 | Round Nut Spanner | 135-145 | Set. | 1 | ||
| 12 | Sleeve Nut and Handle | M80×2 Ø22×280 | Set. | 1 | ||
| 13 | Single-head Wrench | 19 | Set. | 1 | ||
| 14 | Foundation Bolt,Screw and Gasket | M20×400,M20,20 | Pair | 2 | ||
| III. technical document | ||||||
| Item no | Name | Specification or remark | Unit | Quantity | Remark | |
| 1 | Operation manual | Set | 1 | |||
| 2 | Electrical Specification | Set | 1 | |||
| 3 | Inspection Certificate | Set | 1 | |||
| 4 | Electrical Altas | Set | 1 | |||
| 5 | Packing list | Set | 1 | |||
