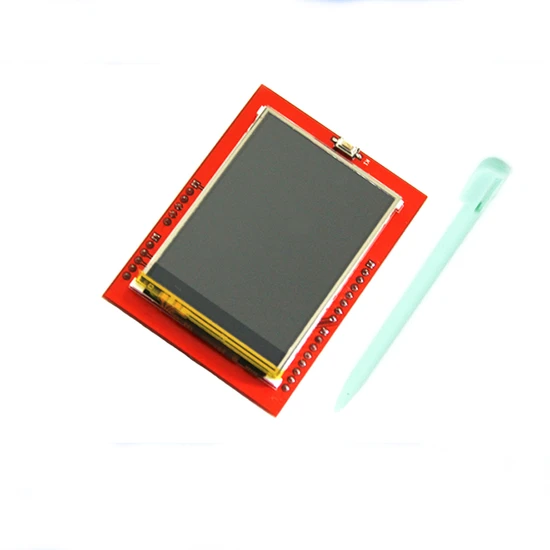

2.4 Inch TFT Colorful LCD Screen Display Module for Arduino

Product Description

2.4 inch TFT Colorful Screen Shield Display Module for orange pi 5
Supports development boards 320X240 resolution, clear display, support for touch function Support 16-bit RGB 65K color display, display rich colors 8-bit parallel bus, faster than serial SPI refresh On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage Easy to expand the experiment with SD card slot Provides an Arduino library with a rich sample program Military-grade process standards, long-term stable work Provide underlying driver technical support

Name	Parameter
Display Color	RGB 65K color
SKU	MAR2406
Screen Size	2.4(inch)
Type	TFT
Driver IC	ILI9341
Resolution	320*240 (Pixel)
Module Interface	8-bit parallel interface
Active Area	48.96*36.72(mm)
Module PCB Size	72.20*52.7(mm)
Operating Temperature	-20~60
Storage Temperature	-30~70
Operating Voltage	5V/3.3V
Power Consumption	TBD
Product Weight(Package containing)	39(g)

Number	Pin Label	Pin Description
1	LCD_RST	LCD bus reset signal, low level reset
2	LCD_CS	LCD bus chip select signal, low level enable
3	LCD_RS	LCD bus command / data selection signal, low level: command, high level: data
4	LCD_WR	LCD bus write signal
5	LCD_RD	LCD bus read signal
6	GND	Power ground
7	5V	5V power input
8	3V3	3.3V power input, this pin can be disconnected
9	LCD_D0	LCD 8-bit data Bit0
10	LCD_D1	LCD 8-bit data Bit1
11	LCD_D2	LCD 8-bit data Bit2
12	LCD_D3	LCD 8-bit data Bit3
13	LCD_D4	LCD 8-bit data Bit4
14	LCD_D5	LCD 8-bit data Bit5
15	LCD_D6	LCD 8-bit data Bit6
16	LCD_D7	LCD 8-bit data Bit7
17	SD_SS	SD card SPI bus chip select signal, low level enable
18	SD_DI	SD card SPI bus MOSI signal
19	SD_DO	SD card SPI bus MISO signal
20	SD_SCK	SD card SPI bus clock signal

Product Description We provide supply solution for Arduino,Raspberry Pi,Micro:bit compatible accessories! Line card including Development Boards,Sensors,Shield Boards,Relay Module,LCD Display Modules,Cables,Kits etc. Currently we exported to USA,Canada,Germany,France,Italy,Czech,Romania,Uruguay,Colombia,Costa Rico,Ecuador,Brazil,Argentina,Korea,Vietnam,India etc.,most of them are project user and STEM education fields(DIY Kits). If you have detail sourcing list,freely drop back to us.

---
