Round Grass Hay Bale Crusher Alfalfa Straw Bales Shredder Machine

Product Description

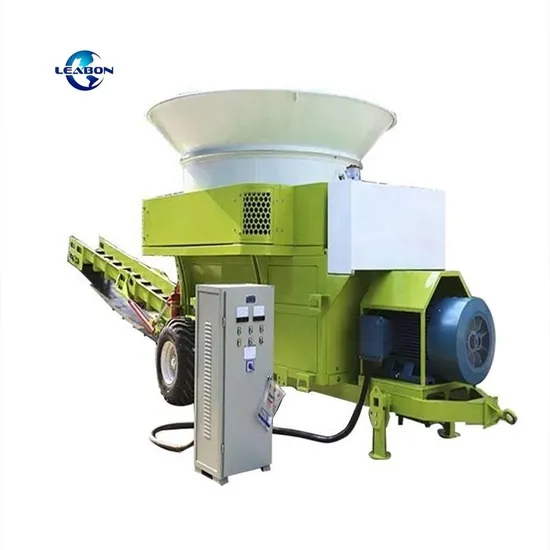

Round Grass Hay bale Crusher Alfalfa Straw Bales Shredder Machine
Product Description
Vertical Type Straw Baler
Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability, and convenient disassembly and transportation.

Product Parameters

Model	9FC-80	9FC-100	9FC-130	9FC-150
Power	22-30kw	45-55kw	75kw	90kw
Capacity	2-3t/h	3-5t/h	5-7t/h	8-10t/h
Crushing effect	3-8cm	3-8cm	3-8cm	3-8cm
Top diameter	1800mm	2200mm	2600mnm	2800mm
Bottom diameter	1500mm	1800mm	2200mm	2400mm
Number of blades	24pcs	24pcs	24 pcs	24 pcs
Discharge method	Spray	Spray type / bottom discharge	Bottom discharge	Bottom discharge
Total Weight	1700kg	2300kg	2800kg	4300kg
Dimensions	3.2*1.8*2m	3.6*2.2*2.3m	4*2.6*2.5m	4.7*2.8*2.8m

Belt Grass Bale Shredder
Product parameter

Type	LBF-1000
Rotor hammer mill	Fly hammer: 64pcs, wear-resisting alloy material Fly hammer shaft: 8pcs, strength alloy steel Bearing: SKF Drive: PTO
Combined power	Tractor drive: 90-180HP Motor drive: 90-150kw PTO speed: 1000/r-min
Screen mesh	Thickness: 6mm;Diameter of hole: 6mm-125mm
Drum/Tub	thickness: 3mm Outside width: 3.2m Inside Dia: 2.3m; Depth: 0.8m
Screw pusher	Type: bi-column symmetric; Length: 1150mm
discharging conveyor	Type: folding hydraulic drive Maximum lifting height: 4.19 m Belt: Rubber
Transport size	6500x3200x3200 mm ; 5300kg

Structural composition
Raw Materials&Final Product
Final Products
