High-Quality Chongli 1380/6 Mother Yarn Machine

Product Description

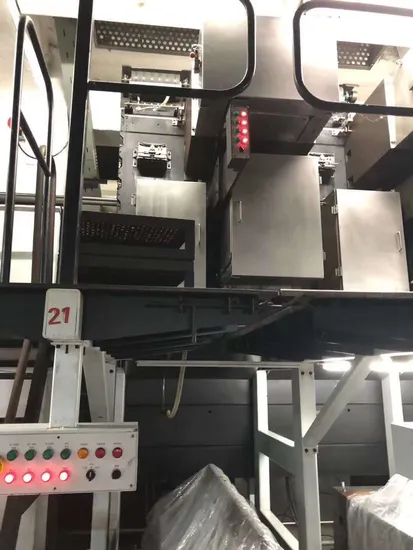

Introducing the TMT, Chongli, or DHP Nylon Mother Yarn Line, available in models 1500/8/16, 1380/12, and 1380/6 for high-efficiency yarn production.
1. Product Variants: 200D/10F, 240D/12F, 300D/10F, 150D/10F, and more to meet diverse textile requirements.
Innovative Polyester Mother Yarn Line for superior quality yarn.
1. Advanced Extruder for optimal polymer extrusion.
2. State-of-the-art Cross Quenching for uniform yarn properties..
3. Precision-engineered Melt Pump for consistent material flow.
4. Robust Melt Pump Motor for reliable performance.
5. High-capacity Winder: Models 1500/8/16, 1380/6/12 for efficient winding operations.
6. GR Configuration: 5 units of GR + 1 or no SR, Size: Diameter 220x400mm per position, 1 SR per position, 110x400mm.
7. Efficient Oil Roller per position for smooth operations.
8. Durable Spinneret: Ø85~Ø120mm for diverse yarn types.
9. Sturdy Spin Beam: 2 positions in one body for structural integrity.
10. High-efficiency Boiler for energy savings.
11. Integrated Control Panel for spinning and taking-up machines for seamless operation.
12. Mono Suction: Water suction system for cleanliness and efficiency.
13. Slow Cooling System for enhanced yarn quality.
14. Versatile Winder from Chongli or TMT, available in Chuck lengths: 1380/6, 1380/12, 1500/8, 1500/16.

Line	Yarn	Final(D)	No of filament (f)	No of Pos×Line	No of ends /pos	Typical product (D/f)
1	Mother yarn	150-300	10-12	6 pos x 1 line	6, 8, 12,16	200D/12f, 300D/10f

Notice: Comprehensive services including reconditioning, maintenance, repair, and replacement for complete lines. We offer machines in like-new condition and turnkey project solutions.
Shanghai POLY Precision Machinery Co., Ltd.is a premier exporter specializing in
a wide range of brands of pre-owned chemicalfibermachinery
including:
Part-I: Second Hand Complete Position from top to winder.
1). Comprehensive Polyester/Nylon POY, FDY, IDY, Bi-component, and Mother Yarn Spinning Machines from
TMT, Barmag, Chongli,
Jwell,
Hi
-tech, and more.
2). Continuous or Batch-wise Polymerization Plants from
Zimmer,
Inventa, Dupont, CTIEI, CTA, Huitong, and others.
3). Polyester/Nylon/PP BCF Machines from Neumag, Rieter, Trützschler, etc.
4). Auxiliary Equipment including Dryers from DHP and Zhongyuan, Melt and Finish Pumps from Barmag, Slack, Mahr, Huaxi, and global air compressors and chillers.
5). Winders and GR systems from TMT, Barmag, Chongli, Jwell, Hi-tech, and more.
Part-II: New and Second Hand Spare Parts
In addition, we proudly supply both new and second-hand spare parts to the global market. Our extensive inventory includes essential components such as Spinneret, Melt Pump, Spin Pack, RNT, Sensor, Bearing, Air Cylinders, Lab Instruments, Vacuum Furnace, Ultrasonic Cleaning Equipment, Oil Mist Generator, Inverter, Birotor Van Guides, PLC, Honeycomb, Core Shaft, Wave Plates, Contact Rollers, Cam Shaft, GR, Cutter Plate, and additional parts for Chongli, TMT, Barmag, Jwell, and Hi-Tech machines.
Part-III: Stellar Performances in the International Market
To date, we have successfully exported over 350 complete positions of POY and FDY machines to the international market, earning an outstanding reputation globally. We also offer comprehensive services for second-hand yarn machines, including reconditioning,
installation, commissioning, and conversion
and other
modifications
as well as complete turn-key projects.
Part-IV: Our Vision and Goals
We staunchly adhere to service philosophies of honesty, reliability, expertise, and credibility. Our goal is to maximize our customers' investment returns promptly, while ensuring superior quality and competitive pricing.
We offer second-hand yarn machines as previously mentioned, and we warmly invite c
ustomers to contact us for more detailed information.

---
