20FT ISO Tank for Lox/Lin/Lar T75 Based on ASME Standard

Product Description

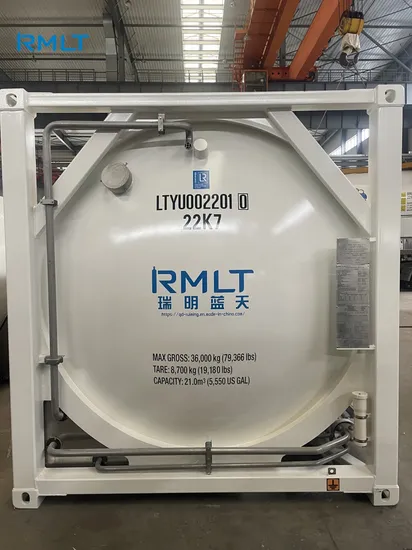

T75 ISO Tank Container

The 20-foot ISO framework type tank container is applicable to Intermodal transportation. Marine, highway, and railroad transportation. With its overall dimensions conforming to the ISO standards, the tank container has a rating for as high as 9 high stacking loaded. Various components such as valves, safety accessories, heating, cooling components, insulation, walkway, and ladders can be configured according to specific client needs and product requirements to store and transport chemicals globally.
We work directly with each customer to ensure their specific needs are met. Our ISO tank containers can be heated or non-heated, insulated or non-insulated with multiple storage capacities.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, food-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.

Product Description
Medium: LO2 /LN2 /LAr/LCO2 /LN2O/LNG/ LC2H4/ LC2H6

1.0 General
Type of product	:	Intermodal ISO Container UN T75
Medium	:	LO2 /LN2 /LAr/LCO2 /LN2O/LNG/ LC2H4/ LC2H6
MAWP.	:	22 bar
Water capacity	:	21 100 Liters
Filling ratio	:	95%/90%/80%
Tare weight	:	8 700kg(f3%)
Load weight	:	27 300 kg
Maximum gross weight:	:	36 000 kg
Stacking	:	192 000 kg
Design code	:	ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT
Approvals	:	CCC, CSC
Approval and inspection org	:	Lloyd's Register
2.0 Inner vessel
Design code	:	ASME SECT.Đ DIV.1 with U stamp(Mandatory Appendix 44)
Material	:	Stainless steel(SA240 304N)
Design temperature	:	50ć
MDMT	:	-196ć
Baffles	:	Two transverse baffles
Surface treatment	:	Pickling
3.0 Out jacket
Material	:	Carbon steel(Q345R)/Stainless steel(S30408)
Design temperature	:	50ć
MDMT	:	-40ć
Surface treatment	:	Shot blast to SA 21/2
4.0 Insulation
Type of insulation	:	Vacuum with multi-layer super insulation
Vacuum	:	≤0.1Pa( Warm)
Net evaporation rate	:	0.34% /d ( LN2 ) (ambient conditions:100kPa and 15ć)

Detailed Photos
Similar Products

Our Advantages
1. Fast delivery : 30-90 days since order confirmed
2. Professional and perfect upstream and downstream supporting services
3. We Supply Systems Solutions - Perfect for many applications: LAR, LIN, LCO2, LN2O, LC2H4 ,LC2H6,ECT.
4. Onsite Filling- No exchanges & tanks are filled onsite
5. Cost Savings- No cylinder handling or need for inventory management
