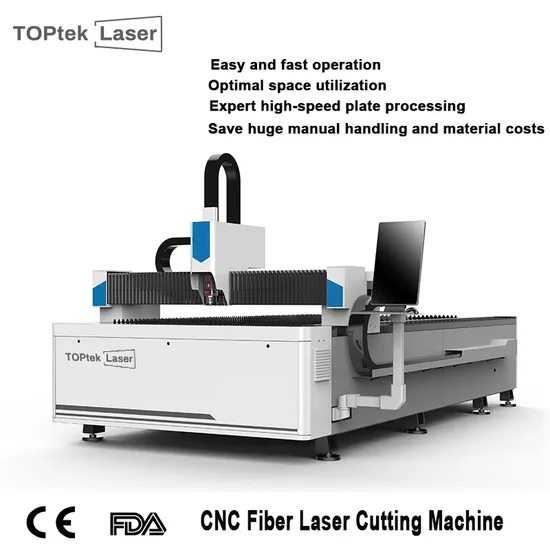

Toptek Laser CNC Fiber Laser Cutting Machine for CS Ss Metal Plate

Product Description

Product Description
Fiber aser technology
Fiber laser cutter is a type of CNC laser metal cutting system with high quality, high speed, high precision and high efficiency, which is designed for all types of metal cutting, as well as your good metal working partner. It is equipped with different laser powers (1KW to 60KW) for cutting sheet metals and metal tubes of carbon steel, stainless steel, electrical steel, tool steel, galvanized steel, mild steel, aluminum zinc plate, aluminum alloy, aluminum, titanium alloy, brass, copper, iron, and more metals with different thicknesses.
Materias to be cut
Carbon steel, stainless steel, silicon steel, alloy steel, spring steel, mild steel, aluminum, galvanized steel, tool steel, zinc plate, copper, brass, pickling sheet, titanium, silver, gold, iron, alloy, and other metal sheets and tubes.

No.	Main parts	Quantity	Brand
1	Fiber laser source	1 set	Original MAX
2	Laser cutting head	1 set	BOCI
3	Lathe bed	1 set	TOPTEK heavy-duty lathe Structure
4	Beam	1 set	Strong Aviation Aluminum Beam
5	Gear reducer	3 sets	France Motovario
6	Water chiller	1 unit	Hanli
7	X\Y servo system	1 unit	CHINA INOVANCE
8	Z servo system	1 unit	CHINA INOVANCE
9	X\Y rack	1 set	Taiwan YYC (Grinding class)
10	X\Y linear rail	1 set	Taiwan HIWIN
11	Pneumatic Components	Several	Japan SMC/German Aventics
12	Electrics	Several	TOPTEK
	Controller	1 set	HypCut(BOCHU)
14	Auto-height-adjusting system	1 set	HypCut(BOCHU)
15	Auto-lubrication system	1 set	TOPTEK
16	Industrial computer	1 set	TOPTEK
17	Exhaust fan	1 set	TOPTEK

Model	TK-3015
Working area(L*W)	3000mm*1500mm
X-axis stroke	3050mm
Y-axis stroke	1520mm
X\Y Max. moving speed	150 m/min
X\Y Max.cutting speed	60m/min
Linear rail diameter	25mm
Helical rack diameter	25mm
Acceleration	1.5G
Positioning accuracy	0.05mm/m
Repeated positioning accuracy	0.03mm
Laser power	2/3/6/12/15/20KW
Table load weight	2000KG
Overall Dimension	4700x2200x1850mm
Machine weight	4.9 tons

Applications
Appications
Electronics, automobiles, aviation, aerospace, auto parts, subway parts, electrical appliances, textile machinery, precision accessories, engineering machinery, food machinery, ship building, household appliances, metallurgical equipment, tool machining, elevators, metal arts, metal crafts, metal gifts, metal decorations, advertising, kitchenware, metal external machining, and some other manufacturing industries.
Company Profile
TOPTEK Laser is an innovative high-tech manufacturer specializing in Intelligent Laser Solutoins (Laser automatic prodution line, Laser welding, Laser cutting, Laser cleaning, 3D Automation welding, Robot Automation station, Laser marking ).
Our mission is to provide Reliable Industrial Solutions to make your production smarter, faster and more cost-efficient with minimum human labor required.
After 10+ years development, TOPTEK are supporting 10,000+ global parnters in customiztion, marketing, local service to enhance their international competitiveness .
1. Customized technical solutions (OEM, ODM),
2. Reliable service timely,
3. Strong marketing (Online/Offline),
4. Lifetime service and upgrade,
5. Financing,
6. Demo and spare parts stocks
Packaging & Shipping
Customer visit
Certifications
After Sales Service
1. Make technical solutions as per customers' real application,
2. Discuss all the benefit, cost and risks with customers,
3. Engineer online support within 30 minutes,
4. Engineer support on-site,
5. Upgrade customers' technical capacity,
FAQ
Q1. When did your factory establish?
A1.We start to focus on CNC laser equipment since 2008, mainly focus on fiber laser cutting/welding machine and cutting/welding robot etc. Welcome to visit us.
Q2. What about machine warranty?
A2:2-year warranty, If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q3. How to install and use?
A3.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q4. What about after-sales problems?
A4.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q5. What about wholesale price?
A5:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price.

---
