Customizable Vertical Impact Crusher Liner Configurations for Different Materials

Product Description

Product Description

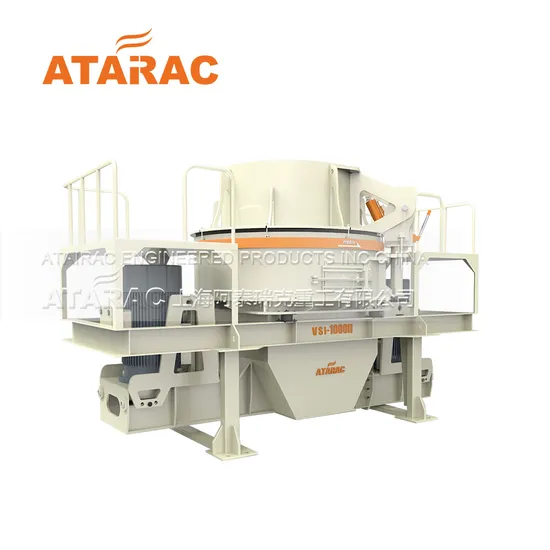

VSI Sand Making Machine is developed on the basis of several patents of our company with the material striking against material, material striking against metal. ATAIRAC VSI Sand Making Machine has two models: 'Stone -Stone (VSI-I)' and 'Stone-Steel (VSI)'. The 'Stone-Stone (VSI-I)' can be used in processing hard materials, and the percentage of sand productivity is about 40%; The 'Stone-Steel (VSI)'can be used in processing the materials with medium and high degree of hardness and the percentage of sand productivity is about 40-60%. The VSI Sand Making Machine can be widely applied to stone reshaping, fine-grain making and sand making in the fields of construction, industrial ore, metallic ore and material recovery, it is the most ideal equipment for artificial sand-making.
(1)Deep cavity design enables bigger inner space of impeller, therefore more throughput capacity and higher efficiency;
(2)Reasonable inner structure, the material liner forms on the chamber wall, which could effectively extend the service life of impeller and wearing parts, reduce usage cost.
(3)High, middle and low speed grades are optional, which amplify the crusher efficiency, and combine crushing, sand making, re-shaping functions as one,
(4)The wear-resistant plate and surfacing on the impeller upper plate provide dual protection, which ensure the impeller safety and repeating use.
(5)Higher manufacturing accuracy and dynamic, static balancing technology make the impeller outstanding in unbalance resistance.
(6)Modularized wearing parts design ensures high generality, less wearing parts type and convenient wearing parts replacement.

Product Parameters

Model	Working Mode	Max. feed size(mm)	Impeller dia. (mm)	Impeller rotate speed (r/min)	Power (kw)	Throughput capacity (t/h)
VSI-550	Crushing& sand making	30	570	2290	30	16-20
					37	20-26
					45	24-32
VSI-700	Crushing& sand making	35	720	1830	55	30-38
					75	40-52
					90	50-65
VSI-850II	Crushing& sand making	50	880	1570	2*90	95-125
					2*110	120-160
					2*132	150-195
	High speed fine crushing& shaping	-5	880	1795	2*110	90
					2*132	120
VSI-1000II	Crushing& sand making	60	990	1365	2*160	200-260
					2*200	250-325
					2*220	275-360
					2*250	320-410
	High speed fine crushing& shaping	-5	990	1545	2*160	150
					2*220	225
VSI-1200II	Crushing& sand making	60	1110	1220	2*250	320-410
					2*280	375-490
					2*315	420-550
	High speed fine crushing& shaping	-5	1110	1400	2*250	260
					2*280	300

SPECIFICATIONS	MODEL	VSI-1500
	MAX FEEDING SIZE	180MM
	DISCHARGE SIZE	<3MM
	DIAMETER OF MAIN BODY	1500MM
	OVERALL DIMENSION	3400*2200*2200
	WEIGHT	13.3T
	SPEED OF MAINSHAFT	430-640(R/MIN)
CAPACITY	50-70 T/H
MOTOR	BRAND	SIMENS(BRAND)/FAMOUS IN CHINA
	POWER	132KW
	VOLTAGE	380V /440V
	FREQUENCY	50HZ/60HZ
MATERIAL	FRAME	Q235
	HAMMERHEAD	HIGH MANGANESE STEEL
	WEAR RESISTANCE PLATE	HIGH MANGANESE STEEL
	BEARING	ZWZ

Remarks: The above capacity of listed crusher is based on the limestone with bulk density 1.6t/m3. The capacity will be affected by many factors such as material shape and nature,grain composition, feeding method and working conditions, etc. So, the above capacity will be changed on the basis of site condition.
Optional Configuration
(1) Feeding control device
Manual hydraulic pump is optional to adjust the flow into impeller, at the same time, by adjusting the vertical position of distributor plate, the proportion of impeller feeding flow and cascade flow into crushing chamber could be controlled accurately.
(2) Simple and easy-to-use lifting device
Hanging type manual or electric hoist is optional for the crusher. During crusher maintenance, this lifting device could easily and conveniently lift the upper cover, feeding hopper, distributor, impeller, main shaft, etc.
(3)Hydraulic jack-up and rotating device on the top section
The device is optional designed for this crusher, which could jack up the feeding hopper and rotate it aside.
(4)Multifunctional crushing chamber
This crusher has two crushing mechanisms: "Stone-stone" and "Stone-steel", and two mechanisms are convertible in one crushing chamber by simple parts replacement, so as to satisfy requirement of different crushing environment and raw material.
(5)Oil lubrication and automatic control system
The oil lubrication system and PLC control and inspection system is optional for installation to monitor feeding quantity, current, oil temperature, main shaft temperature, the system can also realize vibrating protection function.
