Premium PPGI/PPGL/PCM Metal/Pre-Coated Metal/Color Steel Coil for Home Appliances Steel

Product Description

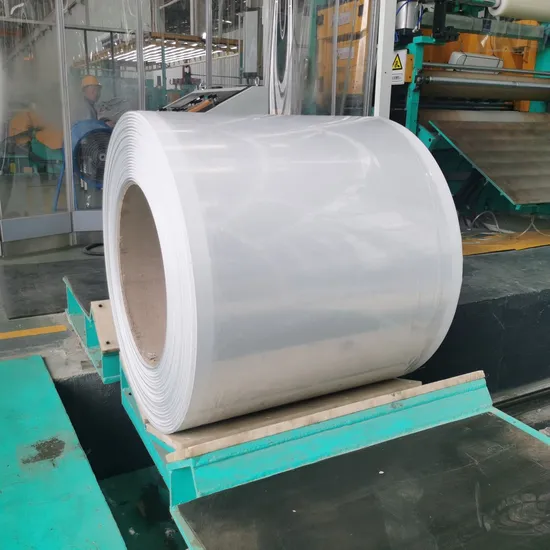

Our clients Detailed Photos
Product Parameters

End-use	width	embossed plate(thickness)	flat plate(thickness)	Zinc coating	material	Yield strength	Elongation
side plate	<500mm	0.35mm/0.4mm	0.35mm	60-120gsm	DX51D/52D	280mpa-380mpa	≥20%
	<600mm	0.40mm/0.45mm	0.40mm	60-120gsm	DX51D/52D	280mpa-380mpa	≥22%
	>600mm	0.45mm/0.50mm	0.45mm	60-120gsm	DX51D/52D	280mpa-380mpa	≥22%
door plate	customized	none	0.40/0.45/0.50mm	60-120gsm	DX51D/52D/D3D	280mpa-380mpa	≥22%
	customized	none	0.40/0.45/0.50mm	60-120gsm	DX51D/52D/D3D	240mpa-280mpa	≥30%
	customized	none	0.40/0.45/0.50mm	60-120gsm	DX51D/52D/D3D	180mpa-240mpa	≥35%
AFP galvanized steel plate	small	0.25mm/0.30mm	0.25mm	60-120gsm	DX51D	280mpa-380mpa	≥20%
	middle	0.30mm/0.35mm	0.30mm	60-120gsm	DX51D	280mpa-380mpa	≥20%
	large	0.35mm/0.40mm	0.35mm	60-120gsm	DX51D	280mpa-380mpa	≥20%

Certifications
Packaging & Shipping Steel coil package
1. The packaging method is shown in the photo
2. The visible side is turned outwards.
3. Coil mass: 2000 to 5000 kg
4. Inside coil diameter: 510 mm max.
5. Outside coil diameter: 1400 mm max.
6. Coil axis: horizontal or vertical Steel plate package
packing paper: waterproof, on the outer side protected with polyethene, on the inner side with anti-corrosion inhibitor; wooden pallet: transversal lath 80 x 80 mm with a groove made of beech wood, support lath 80 x 50 made of pine wood; - applies for lengths of cut-lengths up to 2500 mm 2a - wooden pallet: transversal lath 80 x 80 mm with a groove made of beech wood, holding lath of dim. 120 x
80 mm made of spruce wood - applies for lengths of cut lengths from 2500 mm onwards. steel strip: 32 x 0,90 mm with suitable locking clamp; U-moulded shield: profile height = packaging height, leg width = 100 mm, sheet thickness = 0,50 mm; corner bracket element: profile height = package height, leg length = 150 mm, leg width = 100 mm, sheet thickness = 0,50 mm; covering sheet of packaging size, sheet thickness = 0,50 mm to 0,80 mm; identification label Company Profile Shandong Jinghong Intelligent Technology Co. Ltd has specialized in developing and producing high-quality prepainted steel coil, (including PCM metal, PPGI and galvanized steel coil ) for home appliances metal material since 2015. The products are widely used for the outer shell of refrigerators and washing machines, air-conditioners, microwave ovens, water heaters, rice cookers, televisions, and other appearance parts of home appliances.
Mainly products:
Pre-coated metal on GI and GA base is covered with polyester paint material that is baked on its surface.
Generally, it is divided into two usages, such as home appliances and construction, based on workability, durability, and surface treatment.
Using " high polymer polyester " resin paint provides excellent workability, chemical resistance, brightness, and hardness. Thus, it is good for the outside plate of home appliances, which is considered a good-looking exterior view.
Application: Air conditioner, Washing Machine, Refrigerator, Microwave etc.
We provide you with customers wanting patterns and colours from its various buying sources and know-how.
Production lines&Qty
1. Pickling production line-1 set
2. Cold roll steel production line-3 sets
3. Hot-dipped galvanized steel production line-2 sets
4. PCM metal production line-3 sets
5. Shearing production line units
6. Cross-cutting production line-2 sets
7. Embossed production line-5 sets
Cold roll production line--- 3 sets
A cold rolled steel coil is produced by pickling a hot coil and rolling it uniformly at an appropriate temperature to a thinner thickness. It has excellent surface configuration and superb mechanical properties for automobile and electronic appliance production.
There are two surface finish-Dull & Bright.
Dull Finish
A dull finish, attained by attaching numerous fine grains onto the steel surface, is often called a "pear-skin finish" or "egg-shell texture".The grains are made by steel grit blasted roll. The dull finish is useful in drawing because lubricant oil can be evenly spread over the entire surface, thereby reducing the possibility of friction. The fine grains also help boost paint adherence and extend the steel life span of the steel.
Bright Finish
The bright finish presents high-quality roughness that is optimal for decorative purposes. The sheet surface is rolled with finely polished rolls.
Galvanized steel production line sets
GALVANIZED(GI) steel has excellent corrosion resistance, paint ability, and workability due to Zinc's characteristic of self-sacrifice. The base metals in the coil are continuously annealed, galvanized, and properly levelled.
GALVANIZED(GI) steel has a variety of applications not only in engineering and construction but also in automotive and home appliances. Shin Steel Co., Ltd deals with Regular spangles, Minimized spangles and spangles to meet customers' various requests.
Cross-cutting production area units
Steel surface-embossed
It is steel made from the pressure of the embossing roll on PCM. Its corrosion resistance and embossing cubical feel highlight its image as luxury steel.
It is divided into sides embossing type and one-side embossing type.
Both sides of the embossing type have much price competitiveness due to their higher endurable strength than normal ones. This is because the thickness can be decreased.

FAQ 1. What is the minimum in-order quantity?
One 20 ft container for trial order.
2. How do you control quality?
we have full production lines and strict quality control teams to ensure good quality for years
3. Where is your factory?
Located in No.2007, Xinhua Avenue, Zhoucun District, Zibo City, Shandong Pr.China
4. What is the delivery time?
Within 30-45 days after the confrimed order from you.
5. What kind of payment terms are for you?
T/T or L/C
Application
It is widely used in refrigerators, freezers, washing machines, air-conditioners, LED TVs, Soymilk, microwave ovens, wine cabinets, water heaters, disinfection cabinets, VCD and other appliances and marine appliances, ceilings, integrated bathrooms, Interior decoration and steel security doors, steel entry doors, steel interior doors of the door material.

---
