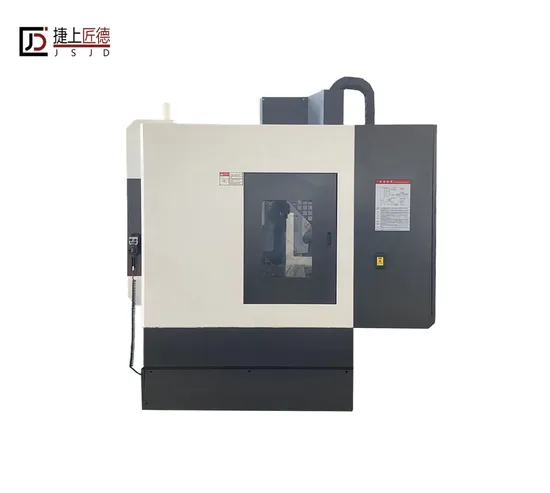

Heavy Duty L-850 CNC Machine Tool China Metal 3 Axis Vertical Milling Machine

Product Description

Product Description
Product Parameters

Specification		Unit	L-850
Travel	X axis	mm	800
	Y axis	mm	500
	Z axis	mm	500
Controller	System		Fanuc:Oi-MF/Siemens/Syntec:220MA/Mitsubishi:M80
	Total axes		3
Accuracy	Positioning accuracy	mm	±0.005/300
	Repositioning accuracy	mm	±0.003/300
Spindle	Spindle taper		BT40-ø150
	Spindle speed	rpm	8000/10000
	Spindle drive type		blet/direct
	Spindle center to column	mm	570
	Spindle end face to work table	mm	140-640
Table	Table size	mm	1000×510
	Table load	kg	600
	T-slots	mm	5-18×90
Guide rail	X/Y/Z axis ball screw	mm	4010/4010/4010
	X/Y/Z axis guide rail type		X axis & Y axis:linear/Z axis:slide
Tool magazine	Number of tools	T	24
	Tool length/weight		300mm/8kg
	Tool diameter (full knife / adjacent empty knife)	mm	ø80-ø150
Motor power	Spindle motor	kw	7.5
	X/Y/Z axis servo motor	kw	2/2/3
	Coolant pump motor	w	750
Feed	Rapid feed	m/min	24/24/16
	Cutting feed	m/min	10/10/10
Others	Power	kva	20
	Air pressure	kg/cm2	6
	Dimensions	mm	2730×2430×2770
	Weight	T	5.5

More products

Specification	Unit	L-850	L1165	L-1270	L-1380	L-1580	L-1890
Three-axis travel (X/Y/Z)	mm	800/500/500	1100/650/650	1200/700/700	1300/800/735	1500/800/750	1800/900/730
Table size	mm	1000×510	1380×600	1500×700	1500×800	1700×800	2000×900
Table load	kg	600	900	900	1500	1500	1800
T-slots	mm	5-18×90	5-18×110	5-18×145	5-22×145	5-18×145	5-22×164
System		Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi
Spindle speed	rpm	8000 10000	8000 12000	8000 10000	8000	8000	8000
Spindle taper		BT40	BT40	BT40/BT50	BT50	BT50	BT50
Spindle center to column	mm	570	698	752	860	871	950
Spindle end face to work table	mm	140-640	120-770	140-840	110-845	150-900	150-880
Spindle motor power	kw	7.5	11/15	15/18.5	15/18.5	18.5	18.5
Rapid feed	m/min	24/24/16	24/24/16	24/24/16	20/20/16	20/20/16	20/20/16
Cutting feed	m/min	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300

Company Profile
FAQ
Q1:What's your main products of your company?
A1:We manufacture all kinds of CNC machine tools ,such as Vertical Machine Center, Horizontal Machine Center, 5 axis Machine Center, Gantry Machine Center, Engraving Machine Center.
Q2:How can I choose the most suitable machines ?
A2:If you are the factory, please tell us your specification request or workpiece drawing, we will suggest the suitable model for you.
If you are the trading company, please tell us your customer's request or we can introduce various models of our company.
Q3:Where is our factory located? Can I visit there?
A3:Our factory is located in Dongguan City, Guangdong Province, China. You are warmly welcome to visit us.
Q4:How is the warranty?
A4:One year.We will do our best to serviced.
Q5:How long is the delivery time for our products?
A5:Twenty days to one month.
Q6:How about your quality?
A6:We have approved the ISO9001:2015 Quality management system and CE European safety standards. Our products are exported to Russia, Vietnam and other countries.
Q7:What is the package?
A7:The machine is by waterproof cloth to covered. And a packed by standard exported wooden case. It is very safety for oversea transportation.
Q8:What's the Payment Terms ?
A8:T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.

---
