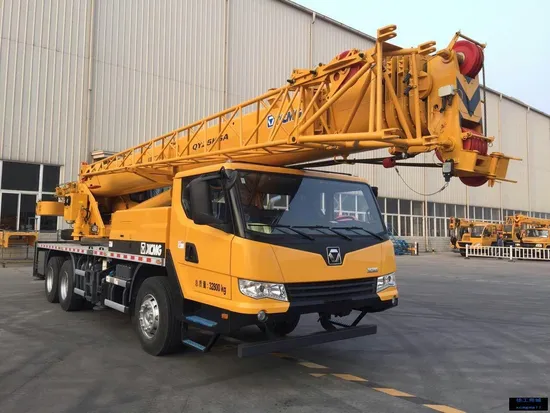

Top Brand 25 Ton 50 Ton 55 Ton 100 Ton Hydraulic Mobile Truck Crane in Stock

Product Description

Product Description
We can provide China top 3 truck cranes with Factory price for you, please contact us for the best prices.

1.Leading lifting performance and traveling performance
2.Mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry
3.Improved reliability of radiation and electric systems, safer lifting and driving operation
4.Air-assisting shift gears bring more comfortable operation
5.New upgraded outline and humanized design, more comfortable driving operation
Specification
Main Technical Data Table in Travel configuration

Description		Unit	Parameter value
Overall length		mm	13930
Overall width		mm	2780
Overall Height		mm	3630
Axle base	1st ,2nd axle	mm	1470
	2nd ,3rd axle		4300
	3rd ,4th axle		1350
Wheel Base		mm	2304+2075
Front overhang/rear overhang		mm	2389/2064or 2376/2064
Front extension/rear extension		mm	2131/226 or 2144/226
Total vehicle mass in travel configuration		kg	42200
Axle load	Front axle	kg	16200
	Rear axle		26000
Engine Model			WD615.338
Engine rated power		kw/(r/min)	276/2200
Engine rated torque		N.m/(r/min)	1500/1300-1600
Max. travel speed		km/h	85
Min. steady travel speed		km/h	2~3
Min. turning diameter		m	24
Min. ground clearance		mm	327
Max. grade ability		%	42
Approach angle		°	19
Departure angle		°	15
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	40
Exterior noise level during acceleration traveling		dB (A)	≤88
Noise level at seated position		dB (A)	≤90
