OEM Custom Hot Sale Stainless Steel Hopper Machine Screw Auger Feeder

Product Description

Product Description OEM Custom Hot Sale Stainless Steel Hopper Machine Screw Auger Feeder

Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Restaurant...
Material	SUS304/SUS316/SUS316L/ Carbon Steel
Name	Auger feeding machine
Warranty	1 Year
Core Components	Motor+Gearbox(Optional)
Application	Powder, Food, corn
Feature	High Efficiency
Condition	New
Material Feature	Customer Request
Voltage	220V/380V/415V
Dimension(L*W*H)	Customer Request
Video outgoing-inspection	Provided
Color:	Customer Request
Usage	Inclined Conveyor
Frame Material	SUS304/SUS316/SUS316L/ Carbon Steel

Product Introduction:

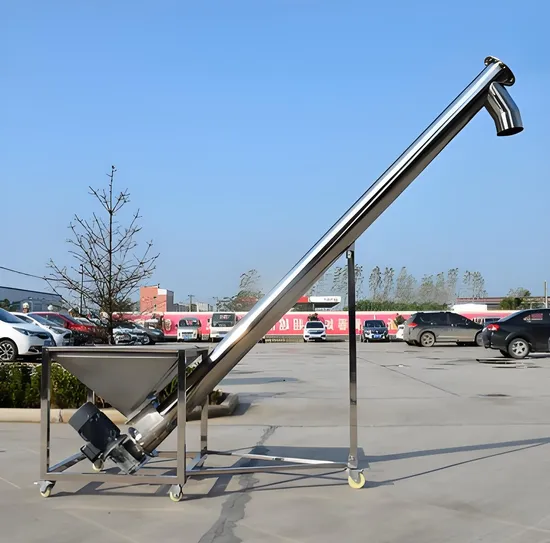

The Auger Conveyor is suitable for transferring a range of powders or granule from ground level to packaging or filling machines or various applications, the product-feed of the conveyor is controlled to retain the product level in the product-hopper. Screw drive feeding machine form a complete set of auxiliary machinery required for plastic processing machinery, is indispensable in the process of blow molding machines feeding auxiliary equipment Powder or granular plastic raw materials can be automatic transfer directly to the inside the hopper, adjust the mixing machine is special equipment contact materials are stainless steel, in conveying process of raw material is not polluted, not into any foreign body, can make the production process to realize the automatic closed.
Optional select:
Auger feeder structure consists of: motor, reducer, sprocket, chain, coupling, main shaft, spiral blade, hanging bearing, housing, etc.
The connection method is divided into: (direct connection type, chain type).
The shape is divided into: (tube type, U type).
Conveying method: (with shaft, without shaft).
The specifications of this product are (tube type, U type) (single shaft, no shaft), shell blade material: carbon steel, stainless steel. According to the particle size, conveying volume and conveying distance of the conveyed material, reasonable selection and design can be made to achieve no jamming, no arching, and smooth discharge. Parameters and drawings are provided free of charge.

Auger feeing machine is widely used in building materials, chemical industry, coal, grain and oil, feed and other industries. It is suitable for horizontal or inclined conveying of powdery, granular and small materials, such as grain, diesel, coal, flour,cement, fertilizer, etc. It is not allowed to transport perishable, sticky and caking materials.
The operating ambient temperature is - 20 ~ 50 ºC, and the temperature of transported materials is ≤ 200 ºC.
1. Equipped with vibration motor+requency changer, make the material into the spiral automatically and flexible output.
2. Custom output height.
3. Can equipped with powder filling machine, mixing machine.
4. Hopper is adjustable and vibrational which make material to be flowing easily. (Customized size)
5. Hopper is separated from twisting shaft. Structure is reasonable and easy to loading and unloading.
6. Characteristic dustproof, bearing won't be polluted by the dust and powder.
7. Smooth surface makes easy to clean the scrapped material.
Application:
Optional selection detail:
Welcome to inquiry :
Related Products
Packaging & Shipping
Certifications
Company Profile
Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.
We are factory and doing traditional export business more than 15 years!
If you have any demand for our products, please feel free to contact me.
FAQ
Q1: Are you trading company or manufacture? A: We are metal factory only for oversea trading. Q2: How long is your delivery time? A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity. Q3: Do you provide samples?Is it free or extra? A: Yes, we could offer the sample for free charge once customer place batch order. Q4: What is your terms or payment? A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment. Q5: Can you produce order and according to the samples? A: Yes, we can produce by your samples . Q6: How to get the quote ? A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours. Q7: What are your shipping way? Sample order: by air freight with 7-15 days. Batch order: by sea ship( or by train to Europe) with 30-40 days.

---
