US$2,084.00
|
1 Piece
(MOQ)
|
Basic Info.
Carrying Capacity
Middle-Level
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001, QC Issued by Gov.
Max Platform Height (M)
3.5
Max Working Height (M)
5.5
Platform Size (M)
0.90*0.64
Delivery Time
15 Days or Rush as Requested
Warranty
12 Months Apart From Man-Made Faults
Transport Package
Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
Origin
Xiangcheng District, Suzhou
Production Capacity
50 Units Per Month
Product Description

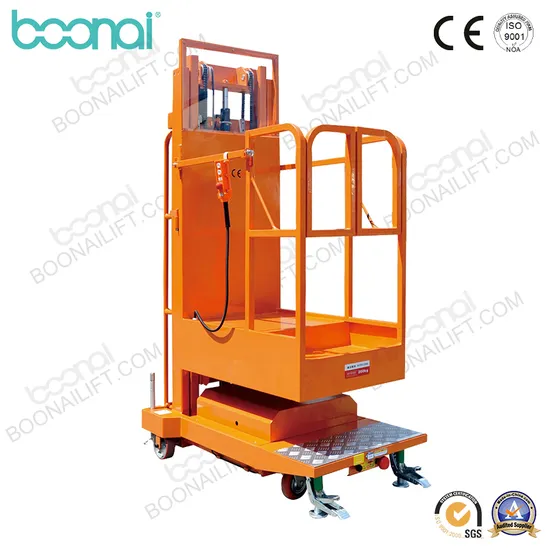

• Mobile Aerial Stock Picker(Triple Masts):
1.Upper / lower control mode
2.Emergency lowering device
3.Double contactors and double limit switches
4.Self-propelled for option
5.Emergency stop button
6.Turning wheel with brake
7.DC 12V control
| • Parameters: |
| Model | DYT2-3.5T | DYT2-4.0T | DYT2-4.5T |
| Safe Working Load(kg) | 200 | 200 | 200 |
| Number of passengers | 1 | 1 | 1 |
| Max working height (m) | 5.50 | 6.00 | 6.50 |
| Max height of platform (m) | 3.50 | 4.00 | 4.50 |
| Overall length(m) | 1.30 | 1.30 | 1.30 |
| Overall width (m) | 0.84 | 0.84 | 0.84 |
| Overall length(m) | 1.66 | 1.83 | 1.99 |
| Platform size (m) | 0.90*0.64 | 0.90*0.64 | 0.90*0.64 |
| Min ground clearance (m) | 0.03 | 0.03 | 0.03 |
| Wheel base (m) | 0.77 | 0.77 | 0.77 |
| Lifting motor (VDC/kw) | 12/1.5 | 12/1.5 | 12/1.5 |
| Up/down speed(sec) | 19/15 | 20/16 | 22/17 |
| Accumulator (V/Ah) | 12/120 | 12/120 | 12/120 |
| Charger (V/A) | 12/10 | 12/10 | 12/10 |
| Front tire (in) | 6 | 6 | 6 |
| Rear tire (in) | 6 | 6 | 6 |
| Overall weight (kg) | 370 | 376 | 424 |
• Products Details:
• Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holidaysm engineers are available to your company if necessary.
>>
