ZICAR Automatic MDF Edge Banding Machine Furniture Cabinet CNC EdgeBander Machine with Pre milling furniture manufacturing line

Product Description

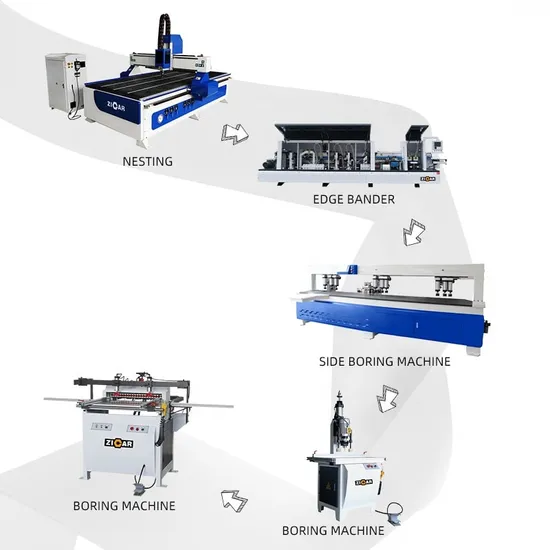

ZICAR plywood edge banding machine MDF board woodwork wpc door making production line edge banding machine

The production line is suitable for some small and medium-sized furniture factories.
Space requirement is about 10(Width)x 18(Length)square meters. Each machine is simple and easy to operate. This production line can reach up to 80-100 pieces standard size board(1220*1440 mm ) within 8 hours, which could improve working efficiency. Only 5-6workers are needed, saving labor costs. Used in kitchen furniture, office furniture and other furnitures.
EDGE BANDING MACHINE
MF50G (5 functions): Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
MF50GM (6 functions): Pre-milling, Gluing, End Cutting, Fine Trimming, Scraping, Buffing.MF50F (8 functions): Pre-milling, Gluing, End Cutting, Rough Trimming, Fine Trimming, Corner Trimming, Scraping, Buffing.

Model	MF50F (8 functions)
Panel Length	Min.150mm
Panel Width	Min. 80mm
Panel Thickness	10-60mm
Edge Thickness	0.4-3mm
Feeding Speed	15~23m/min
Working Pressure	0.6mpa
Net Weight	2450kg
Total Power	16.5kw
Overall Size	6755x970x1650mm

SMART CUTTING DETAILS
Increase Dust-free vacuum efficiency by 80%, No1 revolutionary dust vacuum designin the industry and have won praise from many customers.
2D and 3D processing with router and knife tools.It is equipped with high accuracy gear rack, and the X/Y-axis adopt high accuracy grinding rack for transmission. Assured high stability and processing accuracy.Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc.

X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	200mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
X, Y, Z Structure	German gear wheel for XY axis / Taiwan TBI ball screw for Z axis
Max. Power Consumption(Without spindle)	1.84kw
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	25000mm/min
Spindle Power Motor	3kw water cooling spindle
Spindle Speed	0-24000r/min
Drive Motor	Stepper motor&Leadshine driver
Working Voltage	AC220V/380V 50/60Hz or customized
Control System	DSP handle

CNC DRILLING DETAILS
For horizontal drilling of various wood-based panels, solid wood panels, semi-solid wood panels.
By shortening the auxiliary work time, the processing capacity and production efficiency are greatly improved. At the same time, the number of traditional machine tools and operators is reduced, and the floor space of the workshop is saved.
Application Field
Certifications

Company Profile
* More than 300 employees, 56 technicians, covering an area of 35000 square meters.
*ISO9001:2000, CE certified, 15 national patents
* One-stop service, meet needs of the customers from individuals to international companies.
*OEM service accepted.
* Separate trading office: Jaya Trading with 35 experienced sales offering full scale service.
*Inquiries are typically answered within 8 hours.
* After sale Service: experienced and knowledgeable team of technical support.
*annual turnover:USD 20 million.

Exhibition
FAQ
1.Our Payment term?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.

---
