4310 Female Connector for 1-5/8" Radiating Cable

Product Details

Product Description

Product Description

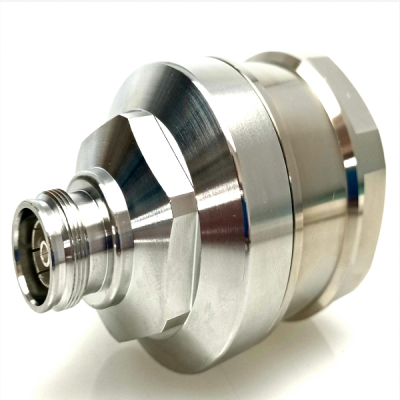

4310 Female Connector for 1-5/8" Radiating Cable
These high performance coaxial cable connectors are designed specifically to provide the highest quality connector-cable interface . The connectors provide outstanding value to users because they permit quick, easy and reliable installation at any location. They attach to prepared cable in one piece assuring error-free attachment. All connectors are fully tested for mechanical and electrical compliance specifications. They are available in all popular cable sizes in both type N 、DIN and 4310 interface.
FEATURES / BENEFITS
1、Fast and Easy Installation
2、Best in class PIM performance
3、Low VSWR
4、Totally Waterproof - Assures safe, long term operation in the harshest of environments.
5、RoHS (EU) and CRoHS (China) compliant .
Material and Plating
1、Inner Conductor Pin..............................................................................Brass / Silver Plating
2、Inner Conductor Socket.......................................................................Tin Bronze / Silver Plating
3、Insulator.....................................................................................................PTFE/TPX
4、Body & Outer Conductor.....................................................................Brass / Trimetal Plating
Electrical Specifications
1、Characteristics Impedance..................................................................50 Ohm
2、Frequency Range....................................................................................DC~2.8GHz
3、Insulation Resistance.............................................................................≥5000MΩ
4、Dielectric Withstanding Voltage........................................................2500V rms
5、Operating Voltage..................................................................................1500V rms
6、Center contact resistance....................................................................≤1.0 mΩ
7、Outer contact resistance......................................................................≤0.25 mΩ
8、Insertion Loss...........................................................................................≤0.10dB
9、VSWR..........................................................................................................≤1.10
10、PIM3(2*43dBm)................................................................................... ≤-155dBc
Environmental & Mechanical Specifications
1、Durability (matings)...............................................................................≥500 cycles
2、Mechanical Shock Test Method........................................................ MIL-STD-202, Method 213, Test Condition D
3、Vibration Test Method...........................................................................MIL-STD-202, Meth. 204, Cond. A
4、Temperature Range...............................................................................-65°C to +85°C
5、RoHS............................................................................................................Compliant

---
