Plastic Three Side Seal Pouch Stand up Zipper Pouch Machine Center Seal Pouch Machine

Product Description

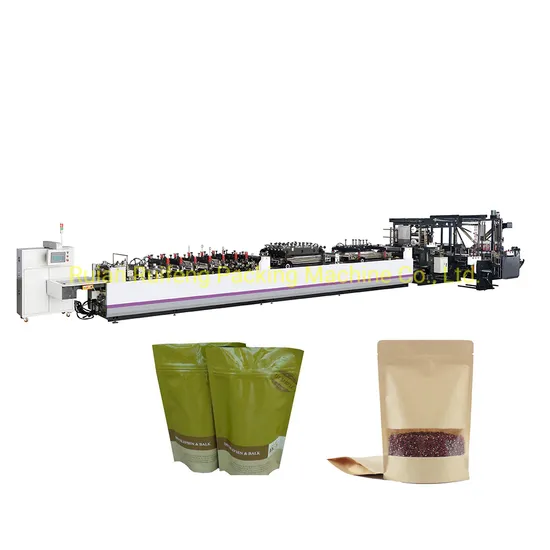

Center Seal Pouch Plastic Coffe Bag Machine
PERFORMANCE AND CHARACTERSTCS

1. Whole machine controlled by central PLC control system with man-machine More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding
3. Imported double servo-motor material dragging control system
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator
7. Temperature adjustment range: 0-300C
8. Counter: quantity, batch accumulation, pre-set available
9. Operation Method: by length fixation control and/or by photocell tracking control Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: one to six times available
12. Batch Conveying Function available, the quantity of batch can be preset
Brief Introduction:
Heavy duty laminated bag making machine, is used for producing various kinds of laminated soft package bag, also it can make center sealing bag, four side sealing bag and three side sealing bag. Feature: It is multi function machine,to make three side sealing bag & center sealing bag Large human-computer interface screen control, automatic design and PLC control. Heavy-duty heat sealing structure,will get stronger sealing It has EPC and double photocell tracking for unwinding Unwinding with automatic tension control option: 1.Double layer unwinder device 2.Punching device for handle. Technical Parameter:

Type	ZUB-400	ZUB-500	ZUB-600
Width of unwind before fold	850mm	1050mm	1250mm
Pouch-making Length	50-2400mm	50-2400mm	50-2400mm
Pouch-making Width	70-400mm	70-500mm	70-600mm
Capacity	40-150pcs/min	40-150pcs/min	40-150pcs/min
Set film dragging speed	35m/min	35m/min	30m/min
Total Power	45kw	50kw	55kw
Weight of Machine	5000kg	5500kg	6000kg
Overall Dimension	10500*1750*1870mm	10500*1850*1870mm	10500*1950*1870mm

---
