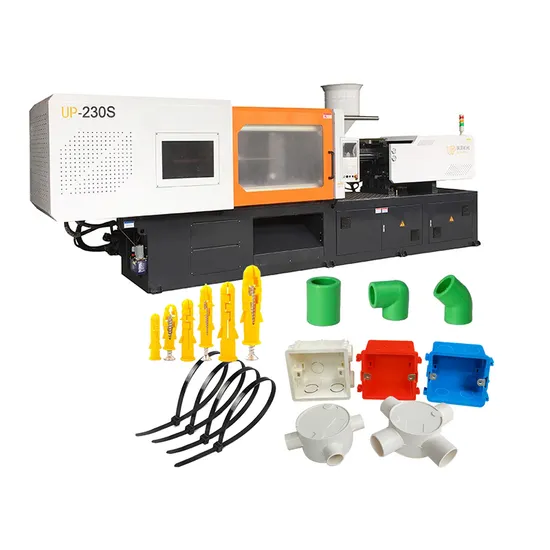

Union Power Factory Direct Sales Injection Molding Machine

Product Description

Overview

Product Parameters

MACHINE MODEL		UP-250
International Size Rating		930/250
INJECTION UNIT		A	B	C
Screw Diameter	mm	50	55	60
Length/Diameter Ratio	L/D	23.1	21	19.3
Theoretical Shot Volume	cm	481	582	692
Injection Weight(PS)	g	433	523	623
Injection Rate(PS)	g/s	169	198	240
Plasticizing Capacity	g/s	26.8	34.5	42
Theoretical injection Pressure	Mpa	195	161	135
Maximum Screw Speed	rmp	0-200
Clamping Unit
Clamp Tonnage	kN	2500
Toggle Stroke	mm	500
Space Between lie Bars	mm	580X520
Max. Mold Height	mm	580
Min.Mold Height	mm	520
Daylight Opening	mm	1080
Ejector Number	Piece	9
Ejector stroke	mm	150
Ejector tonnage	kN	100
OTHErS
System Pressure	Mpa	16
Pump moter Power (servo)	kW	27.8
Heater Power	kw	14.2
Machine Dimension(LxWxH)	mm	6.0X1.6X2.2
Oil tank Capacity	L	380
Machine Weight	t	7.1

Machine Details
Application Example
Why Choose UP Machines
Packaging & Shipping

FAQ
Q1: Where is your factory located?
A1: Ningbo Union Power Machinery co., ltd which is located at No. 6006, Tongtu West Road, Haishu District, Ningbo City, Zhejiang Province.
Distance 2 hours by train from Shanghai city, 2hour by air from Guangzhou city.

Q2: Are you an integrated supplier for injection molding machine, mold, robot and auxiliary?
A2: Yes, we can provide the one-stop solution complete line according to customer's requirement.

Q3: How about the quality control in your factory?
A3: Union Power has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: What is the delivery time of the machine?
A4: Actually, the delivery time is depended on the machine model size.
Normally, the delivery time as below list:
7-10 working days after received deposit. (100ton -530ton)
30-40 working days after received deposit. (620ton-750ton)
60-75 working days after received deposit. (800ton-1280ton)
75-90 working days after received deposit. (800ton-1280ton)

Q5 : What is the warranty of the machine ?
A5: Union Power machine main steel part is guaranteed for 3 years,and the electrical part 1 years, but worker's wrong operation is not included. We will prepare some spare part for the easy wearing parts.

Q6; How to install the machine and use the machine?
A6: Union Power will send you installation video and guide file. Also if you want, We can send engineer to your factory for worker training and machine installation.

Q7:I want to make a plastic product, but I don't know how to choose a suitable machine model, what should I do?
A7: Please feel free to tell us about the product detail information, such as size and weight, how many output you prefer per hour. We will help you to make good proposal with discount price.

---
