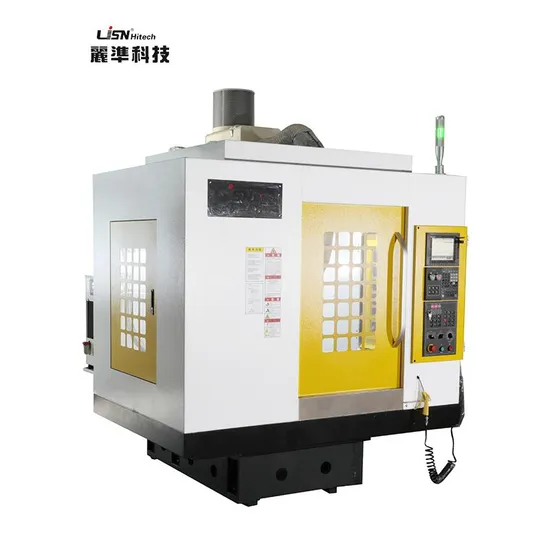

(VMC640/T6) 4 Axis CNC Drilling Tapping Center Milling Machine for Aluminum Brass Metal Processing with 20000-24000rpm Bt30 Spindle

Product Description

Product Description
The machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient. The spindle motor and the spindle are designed to be directly connected, so there is no noise and vibration problem because there is no belt. The machine is equipped with a low-inertia spindle motor, which makes the acceleration time very short, from 0 to 12000RPM in one second. The Thermal Isolated Direct Drive System can effectively block the heat transmission of the motor to the spindle, and can significantly reduce the heat of the spindle.
Detailed Photos
Product Parameters

Item	Specifications	MODELS→	TV500	TV600	TV700
Travel Range	X/Y/Z Axis Travel	mm	500/400/300	600/400/300	700/400/400
	Distance From Spindle Nose To worktable	mm	130-450	150-450	150-450
	Distance from spindle center to column track	mm	410	410	410
Worktable	Worktable (Width XLength)	mm	650 X400	720 X400	850 X420
	Max Load Bearing Of Worktable	kg	200	200	200
	T-Slot(number of SlotxSlot WidthxPitch)	mm	3 x 14 x 125	3 x 14 x 125	3 x 14 x 125
Spindle	Spindle Hole Taper	type	BT30	BT30-100-20000	BT30
	Spindle Speed Range	rpm	20000	20000	20000
Motor	Spindle Motor Power	kw	3.7/5.5	3.7/5.5	3.7/5.5
Accuracy	X/Y/Z Position Accuracy	mm	±0.005/300	±0.005/300	±0.005/300
Machine Dimension	Machine Weight	kg	3000	3000	3000

Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
