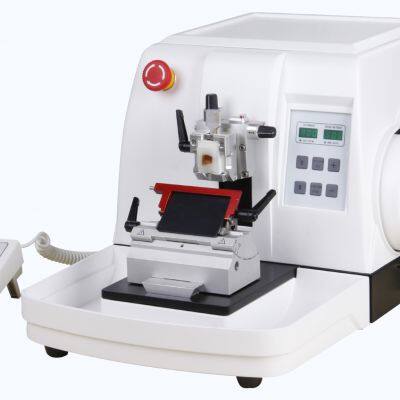

| Model No.APS-3398 Specification List | |||||
| Parameter | Section thickness setting range | 0.25—100μm 0.25—2.5μm increment 0.25μm 2.5—5μm increment 0.5μm 5.0—10μm increment 1μm 10—30μm increment 2μm 30—60μm increment 5μm 60—100μm increment 10μm | |||
| Trimming thickness setting range | 1—600μm 1—10μm increment 1μm 010—020μm increment 2μm 020—050μm increment 5μm 050—150μm increment 10μm 150—600μm increment 50μm | ||||
| Minimum setting of sectioning thickness | 0.25μm | ||||
| Specimen retraction setting range | 0μm-50μm ( 0 is off ) 5μm-10μm-15μm—50μm (optional) | ||||
| Feed speed adjust | 1500μm/s--3500μm/s | ||||
| Precision and error | ±1% | ||||
| Maximum specimen size | 70mm*70mm(optional clamp) | ||||
| Specimen horizontal feed | 28mm | ||||
| Vertical specimen stroke | 70mm | ||||
| Specimen holder rotation | At any angle within 360º | ||||
| Movement range of the base of blade holder base | 0-60mm (front to back) | ||||
| Movement range of the blade press plate | 0-23mm | ||||
| Specimen clamp rotation | At any angle within 360 degrees | ||||
| Specimen orientation | XY – 8° | ||||
| Technical Data | Working voltage | AC220V±10%,50Hz (standard model) AC110V±10%,60Hz | |||
| Power | 150W | ||||
| Dimension | Net weight | 41KG | |||
| Size | 580mm*475mm*340mm(W*D*H) | ||||
