Auto Double Spindle Drilling Tapping Complex Machine

Product Description

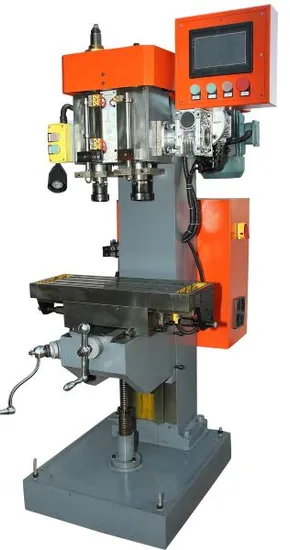

Auto double spindle drilling tapping complex machine
I.Equipment description and pictures
1,PLC control program control; Touch screen interface friendly dialogue, intuitive programming easy to operate. Ordinary people can quickly learn.
2,Drilling servo feed, tapping shaft cylinder flexible tapping teeth.
3,Fool type automatic cycle processing, automatic die opening after processing. Convenient and fast, can realize one person operate three machines, greatly reduce labor cost and labor strength.
II.Technical Parameter

NO.	Item Name	Specifications
1	X axis maximum stroke(pneumatic)	160
2	Y axis maximum stroke(manual)	120
3	Maximum stroke of drilling spindle	110
4	Maximum stroke of tapping spindle	100
5	The spindle spacing	150
6	Spacing between spindle end face and worktable	260/580
7	Spindle taper	Spindle taper
8	Maximum drilling diaweter	Ф32
9	Maximum tapping diameter	Ф32
10	Z1 Shaft speed (drilling)	0-1420
11	Z2 Shaft speed(tapping)	0-1420
12	Spindle motor power	3kW/4P
13	Outside size:length×width×height	1200×610×1500MM
14	Machine net weight	700KG

III.Production workshop
IV.Package and Loading
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.
If you have any interest, pls feel free to contact at any time.

---
