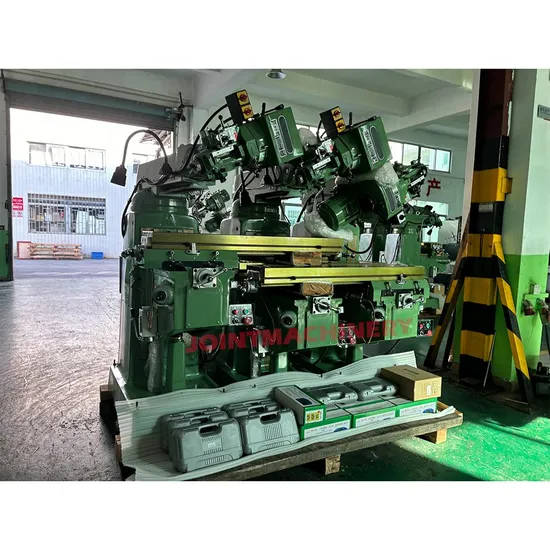

Manual Conventional Milling Equipment Knee Type Milling Machine for Metalworking

Product Description

Crafted with high-quality castings and precision processing, our Knee Type Milling Machine ensures unparalleled precision and rock-solid stability, setting a new standard in metalworking excellence.
√ Experience exceptional accuracy with our spindle tolerance precisely maintained at a minuscule 0.002mm.
√ Benefit from our dual-precision scraping technique, guaranteeing superior processing quality every time.
√ Perfectly engineered for electronic parts, our machine effortlessly handles holes, slots, frames, and mold processing with precision and ease.
√ Features a Taiwan original milling head, paired with Japan's NSK P4 precision spindle bearing, ensuring unmatched performance and durability.
1. WORKTABLE
Our worktable is enhanced by ultra-audio quenching, precision grinding, and meticulously scraped guides for optimal performance. Optional rotary table available for added versatility.
2. TURRET MILLING HEAD
The turret milling head offers dynamic maneuverability, swiveling 45° forward-backward and rotating 90° left-right, facilitating milling at unique angles effortlessly.
3. SPINDLE
Equipped with a high-precision R8/NT30/NT40 spindle, achieving an impressive spindle runout of just 0.003mm for precise machining.
4. X/Y/Z AUTO FEED
With X/Y axis auto feed and Z axis electric lifting, our machine significantly boosts machining efficiency and operator convenience.
5. DRO
Tailored to customer requirements, choose between optional 2-axis or 3-axis DRO systems to enhance precision and control.
Manual Conventional Milling Equipment Knee Type Milling Machine for Metalworking

Model				6VA/6VB
Table size			mm	1370*330*90
Travel		X axis	mm	850/1000
		Y axis	mm	390
		Z axis	mm	450
Travel of spindle quill			mm	150
Maximum distance from spindle nose to table			mm	570
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	60-3000 (10 grade)
		60HZ	rpm	70-3900 (10-grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	60-3250
		60HZ	rpm	70-3900
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			NT40
	Rated power		HP	5HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1600*2000*2450
Weight			kg	2200/2300

Shenzhen Joint Machinery Co., Ltd. stands as a distinguished manufacturer and exporter of top-tier machinery, including CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines. Our unwavering commitment to quality is reflected in our superior machines and exemplary customer service, ensuring we meet and exceed global industry standards. Incorporating advanced technologies from Taiwan and Germany, we utilize cutting-edge production equipment and processes, resulting in machines that deliver exceptional quality and reliability. Renowned for their precision, stability, and dependability, our machines adeptly handle complex and demanding machining tasks. Exported worldwide, our products have earned extensive recognition and popularity among customers. With a strong market presence across Asia, Europe, South America, North America, and beyond, we have forged enduring partnerships with clients across various regions, generating significant business value together.

---
