Chinese Suppliers Angle Bead Corner Paper Protector Board Making Machine

Product Description

Product Parameters

Model	SANPPL-120H
V protector size (mm)	30 -100 (can be symmetrical and asymmetrical)
Thickness (mm)	1-8mm
Applicable inner paper	360-600g/m2 fluting paper or corrugating medium paper
Applicable surface paper	175-250gsm craft paper
Core diameter of paper roll	3"(76mm) ( 4"or other size must be confirmed when making order)
Max. quantity of Layer	13
Max. speed	60m/min

Product Details
Product Introduction

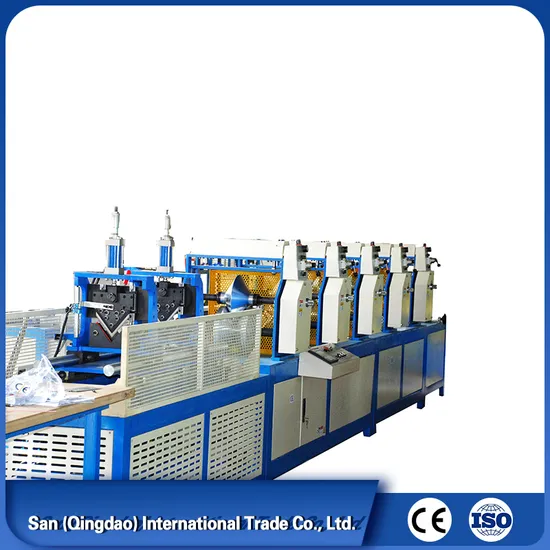

SANPPL-120H is one paper corner board making machine with speed of 60m/min. This paper corner board machine has 12 groups of pressing wheels,and it is only for V shaped paper corner board production. Also have features of simple operation, convenient maintenance and high configuration.
Product Composition
Main Features
1) Suspended paper stand with buffering effect, replace the paper rolls with hoist, no need stop to the machine.
2) Automatic controller for glue temperature ensures the good quality even in winter.
3) Heating system for production line, makes the protectors stronger.
4) Molding wheels adopt box type suspended structure, easy to change mold.
5) Touch screen and human-computer interface of servo system, teh operation is more personalization, the operation for adjust air cylinder is more convenient.
6) Automatic to alarm, malfunction, easy to adjust and maintain.
7) Hudraulic cutting system, maximum frequency is 90 times/min.
8) Automatic stacking system with counter.
9) Through changing tools, it can produce U profile protector and Flat board.
Certifications
Our Service
√One year guarantee for whole machine, all life follow-up service.
√24 hours technical support by email.
√Technicians oversea set-up and workers training.
√Use- friendly English for operation system.
Company Information
As the leading producer and supplier for paper edge protector machines in China and in the world, since 2001, we have supplied about 120 sets to Chinese market and about 50 sets to international market of Chile, Indonesia, Poland, Italy, Argentina, Slovakia, Czech, Egypt, Mexico, Hungary, Croatia, COTE D'IVOIRE, Kenya, USA, Vietnam, Thailand, Philippine, Macedonia, Colombia, Turkey, South Africa, South Korea, UAE, India, etc.
Customer visit
Packing & Delivery
Packaging Details: Film+ honeycomb board packing
Delivery Detail: Shipped in 60 days after payment
FAQ:
Q1: What's your warranty policy?
A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to find the matching accessories or wearing parts of the machine?
A2: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.
Q3: Do you have technical instruction if I buy your product?
A3: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q4: What is your overseas service?
A4: We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
Q5: How to get raw material or auxiliary material for the machine?
A5: Our company has over 10 years experience in this industry, we have accumulated various contact information of upstream & downstream firms in fields of raw material,auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.

---
