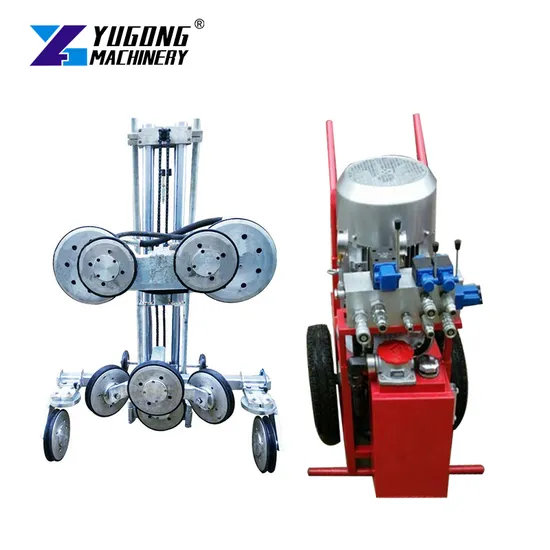

Hydraulic Diamond Wire Saw Cutting Machine for Cutting Concrete Building

Product Description

Diamond Wire Saw cutting tool stone/concrete/steel cutting machine with rope Product Description 1. Hydraulic Diamond Wire Saw Machine is used to cut concrete, granite, rock, walls and beams in constructionof bridges,
roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns,
beams and mining rocks.
2. Product composition: Hydraulic power station consists of a motor, oil pump, fuel tank, filter, hydraulic hose, water cooler,
high-pressure valve, and so on.
2. Features: Reduced labor intensity, safe and reliable operation, overload protection, strong power, improved cutting capacity,
and labor productivity. It is advanced equipment used for demolition, demolition, and demolition of construction projects.
Because its linear cutting can make the construction section neater; but also because it can double the speed of work to shorten
the construction period, further reduce labor costs, increase bidding advantages, and expand the scale of acceptable construction
projects; the hydraulic system's safety, Reliable, and stable.
3. Application: The device can realize various cutting for thicker concrete. Bridge cutting, girder cutting, underwater cutting, and so on.
General application in the static cutting and dismantling of bridges, piers, dock platforms, and underwater concrete piles to ensure
that the original structure is not damaged. Detailed Photos

Hydraulic Pump	YG-25	Motor Power	25kw
Voltage	220V/380V, 50Hz	Motor Type	HM-80, 2 Cylinders
Rotation	1300r/min	Working Pressure	15-20Mpa
Weight	170kg	Size	720*650*1050mm
Frame & Wheels	Aluminum	Wheels	10
Weight	75kg	Size	90*90*1700mm
Diamond Wire Saw	Diamond Wire	Specification	φ11.5mm 40beads/m
Cutting speed	3~5m2/h	Wire life	2~3m2/m
