High Speed Vertical CNC Metal Die Drilling and Tapping Machine

US$28,000.00-68,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
T6
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
T6
Item
CNC Deep Hole Drilling Machine
Workbench Size
L700mm X W420mm
Spindle Speed
20000 (Rpm)
Spindle Specifications
Bt30
X-Axis Displacement
600mm
Y-Axis Displacement
440mm
Z-Axis / Z2-Axis Displacement
450mm
Rapid Feed
48 M/Min
Transport Package
Standard Exporting Package
Specification
3300x4200x3300mm
Trademark
TEMY
Origin
China
HS Code
8459210000
Production Capacity
500 Sets/ Year

Product Description

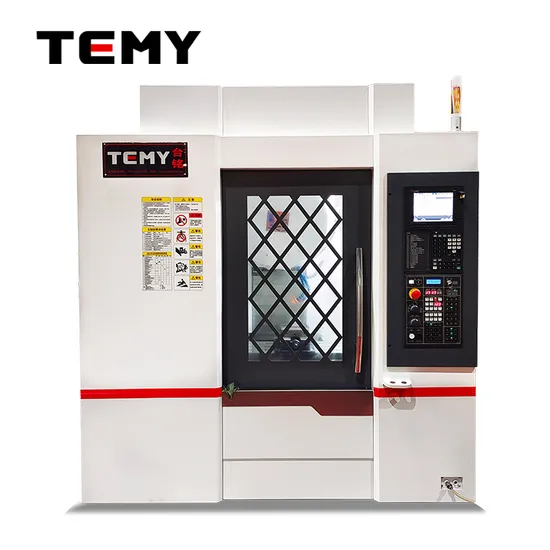

CNC drilling and tapping machine
Model: T6
This series of products are manufactured according to imported machine quality standards, with high stability, high speed and high efficiency drilling processing. It is widely used in 3C industry, electronic shell processing, aerospace, automotive small parts, medical equipment and other industries to process parts, shells, etc.
Parameter:
Model UNIT T6
X-axis travel mm 600
Y-axis travel mm 440
Z-axis travel mm 450
Workbench area mm 700*420
T-groove width mm 3*14*125
Max. load of workbench kg 350
Spindle taper hole / BT30
Spindle speed rpm 20000
Distance from spindle to worktable mm 140-590
Spindle center to slide rail surface mm 474
Rapid displacement m/min 48/48/48
Spindle motor kw 5.5
Mechanical weight kg 4600
