Basic Info.
Raw Material
PVC,PS,Pet,PP
Making Method of Parison
Feeding Cup,Curling,Completed Cupand Stacking
Computerized
Computerized
Transport Package
Wooden Packaged or Stretch Film Packaged
Production Capacity
50 Sets/Month
Product Description
Product Description

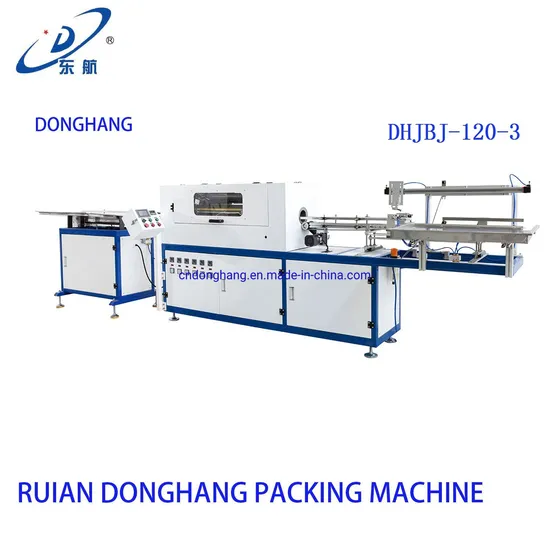

The machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup.
we will depend on your different cup to make the different screws, then the end products will be much better.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
| Max. Speed of Curling | 300-600pcs/min |
| Max. Dia. Of Curling | 50-120mm |
| Main Motor | 1.5Kw |
| Feeding Motor | 0.09Kw |
| Heating Power | 10Kw |
| Overall Size | 5200×1100×1300mm |
| Power | 380V/50HZ |
| Weight | 0.9T |
| Air Pressure | 0.6MPa |
>>
