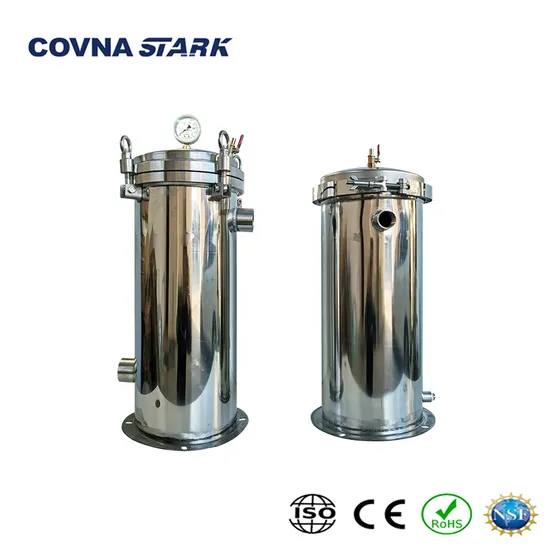

High-Quality Cartridge Filter Flange Type Stainless Steel Precision Filter Has Good Filtering Effect for Water Treatment

Product Description

Product Description

Gross weight	30kg
Length	450mm
Width	810mm
Number of core	7Core
Storage capacity	3500L/h

Material: SUS304/316L Connection Type: Screw Thread Or Flange Seal Material: Buna/Silicone Seal Type: Ladder-Type Seal Ring Apply To Strainer: 10"/20"/30"/40"plane/222Plug-in Design Pressure: 0.8Mpa Surface Disposal: Sandblast or Polishing Mounting Legs With Adjustable Height
Product Features - Food grade stainless steel liquid filter housing pp filter core oil filter housing
- Can be applied for most particles so it is broadly for precision filter and sterilization
- The material of the filter core is PP, PTFE, nylon, SS304/306L
- Optional hydrophilic (suitable for gas) or hydrophilic (suitable for liquid)
Product Description
Under the influence of pressure,The liquid into the interior of the filter, Impurities are trapped on the filter element, The filtrate flows through the filter core to achieved the purpose of filtration.
This generally occurs after multi-media pretreatment filtration, before reverse osmosis, ultrafiltration, etc. membrane filtration equipment. It is used to filter out fine substances (such as tiny quartz sand, activated carbon particles, etc.), bacteria and other impurities filtered by the multi-media.
The working principle is Mechanical filtration using different precision pores of the filter element. all contaminants can be trapped in the filter cartridges surface and in the pores because of the flow direction.
As the filtration time increases, the filter element is contaminated by impurities. The running resistance increases, and when the operating pressure difference between the inlet and outlet water reaches 0.1 MPA, the filter element should be replaced.
application area:
Widely used in various industries for pre-treatment and filtration, it can effectively remove impurities, sediment, suspended solids, and bacteria in water, thus achieving the purpose of filtration.
Product Features: ts appearance is beautiful, its structure is simple and reasonable, and it adopts internal and external polishing. It has the characteristics of low cost, small volume, large filtration area, fast filtration speed, low blockage rate, acid and alkali corrosion resistance, and long service life. Replacing different types and accuracies of filter elements in the tank (such as PP filter elements, wire wound cores, folding filter elements, metal sintered filter elements, titanium rod filter elements, and other different specifications and models of filter elements) can remove various small particles, colloids, metals, bacteria, residual chlorine, and other impurities from the filtrate. 1. Can withstand high filtration pressure and effectively remove suspended solids, rust, etc. in liquids; 2. The filter element can be made of various materials to meet the needs of various fluid filtration; 3. Small appearance, large filtration area, low resistance, and long service life; 4. Resistant to acid, reducing and other chemical solvents; 5. High filtration accuracy, uniform pore size of the filter element, high strength, high temperature resistance, and the filter element is not easily deformed; 6. Low filtration resistance, high flux, strong interception ability, and long service life; 7. The filter material has high cleanliness and no pollution to the filter medium; 8. Low price, low operating cost, easy to clean, and replaceable filter element. 9. The shell is generally made of stainless steel material, and the tank body material can be divided into fiberglass tanks, carbon steel tanks, and stainless steel tanks, which can also be made according to user requirements. Internally, tubular filter elements such as PP melt blown, wire fired, folded, titanium filter element, and activated carbon filter element are used as filtering elements. Different filtering elements are selected based on different filtering media and design processes to meet the requirements of effluent quality.
Working principle: Security filters are made of formed filter materials. Under pressure, the original liquid passes through the filter material, while the filter residue remains on the filter material wall. The filtrate flows out through the filter material, effectively removing impurities, precipitates, suspended solids, and bacteria from the water. To achieve the purpose of filtering. The formed filter materials include: filter cloth, filter screen, filter plate, sintered filter tube, wire wound filter element, melt blown filter element, microporous filter element, and multifunctional filter element. Due to different materials, the filter aperture also varies. Precision filtration is a type of filtration that lies between sand filtration (coarse filtration) and ultrafiltration, with a filter aperture generally ranging from 0.1 to 120 μ M range.
Company Profile
ABOUT US
STARK Environmental Solutions Ltd. is a company that focuses on water treatment plant and is committed to the research and development, production, sales and after-sales service of environmentally friendly water purification industrial products. The main production and operation of water treatment plant: reverse osmosis system, ultrafiltration system, EDI desalination system, sea water desalination plant, brackish water desalination plant. Products are widely used in electronics, electroplating, power plants, medicine, petroleum, chemical, food and beverage, printing and dyeing industries. Stark strives to be the forefront explorer of water treatment equipment at home and abroad!
Certifications FAQ 1. There are many unqualified products in the market, how can you make sure your quality control? We have passed SGS, ISO:9001,certification.Eeah pcs of the goods would be checked several times strictly before shipping,and we are glad to accept the Third- party inspection company to quality check. And we will full refund in case of any bad quality. 2.What about the delivery time? About 7~30 Working days. 3.How about your production capacity, and how can you make sure my goods would be delivery on time ? We have 12 production lines, six quality inspection teams, and hundreds of skilled workers who have worked for more than five years. The delay rate in the last years has been less than 0.3%. 4.How about your design ability? Do you offer OEM service? We have our own design department, and have offered design service for thousands of cooperative partner. OEM accept and we offer confidentiality agreement "business secret contract" for your design safe. 5.Can l place a small order to test the quality? Yes sure ,small order are also welcomed. 6.Can I visit your factory? Sure , welcome to visit our factory. We will 100% inspect the products before shipment.

---
