Factory Price LSZH FRP/Steel Optical 1/2/4 Core Flat FTTH Indoor/Outdoor Drop Fiber Optic Cable

Product Description

SHG Factory Price 1/2/4 Core Indoor Outdoor LSZH FRP Steel Flat Drop FTTH Cable Fiber Optic Cable (FTTH).
Description

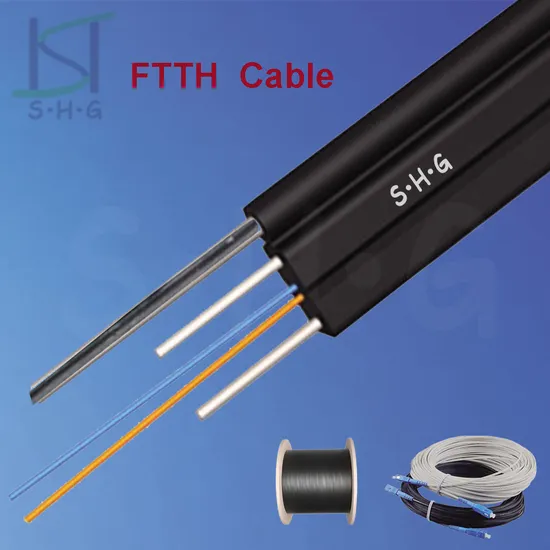

Use selected top brand (YOFC, Corning) ITU. G.657A2 or G.657A1, or G.657B3 fibers, the color coated optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP/KFRP) or steel wire are placed at the two sides. Then the cable is completed with a black or color LSZH sheath, it is UV & Flame retardant.
Features
1) Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2) Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
3) Simple structure, light weight and high practicability;
4) Novel flute design, easily strip and splice, simplify the installation and maintenance;
5) Low smoke, zero halogen and flame retardant sheath.
Application Most be used in access network, customer premises network, distribution network. Excellent physical properities allow it can be
Construction
> Indoor : without messenger type, RFP/steel wire, white or black upon requirement;
> Outdoor: messenger type, RFP/steel wire, solid / strand steel wire messenger optional upon requirement.
Drop cable FTTH fiber optical cable Technical Parameters

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0± 0.1)× (5.0± 0.1)	21	300/600	1000/2200	10/25
2	(2.0± 0.1)× (5.0± 0.1)	21	300/600	1000/2200	10/25
1	(2.0± 0.1)× (5.4± 0.1)	25	300/600	1000/2200	10/25
4	(2.0± 0.1)× (5.6± 0.1)	25	300/600	1000/2200	10/25

Package
> 1 or 2km/wooden reel, then in pallet.
> 500m reel, or pull box, or other requirement upon request.
Special packing acceptable , upon customers requirements!
Company Tour - workshop Workshop view
Certificates Certifications ISO9001:2008, CE, RoHS, REACH
Why Choose us Our Advantages
FAQ FAQ Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group. Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received). Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

---
